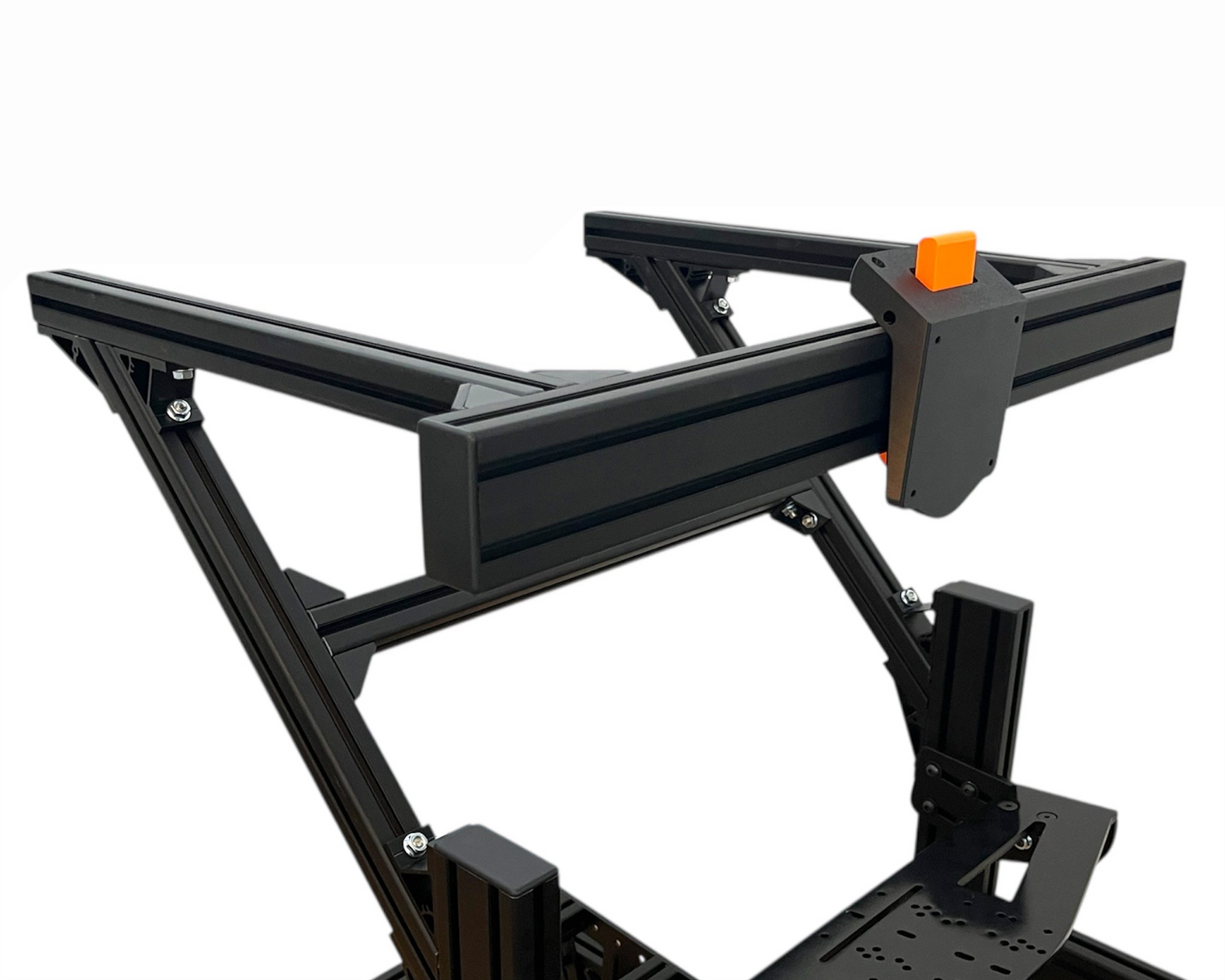

Monitor mount

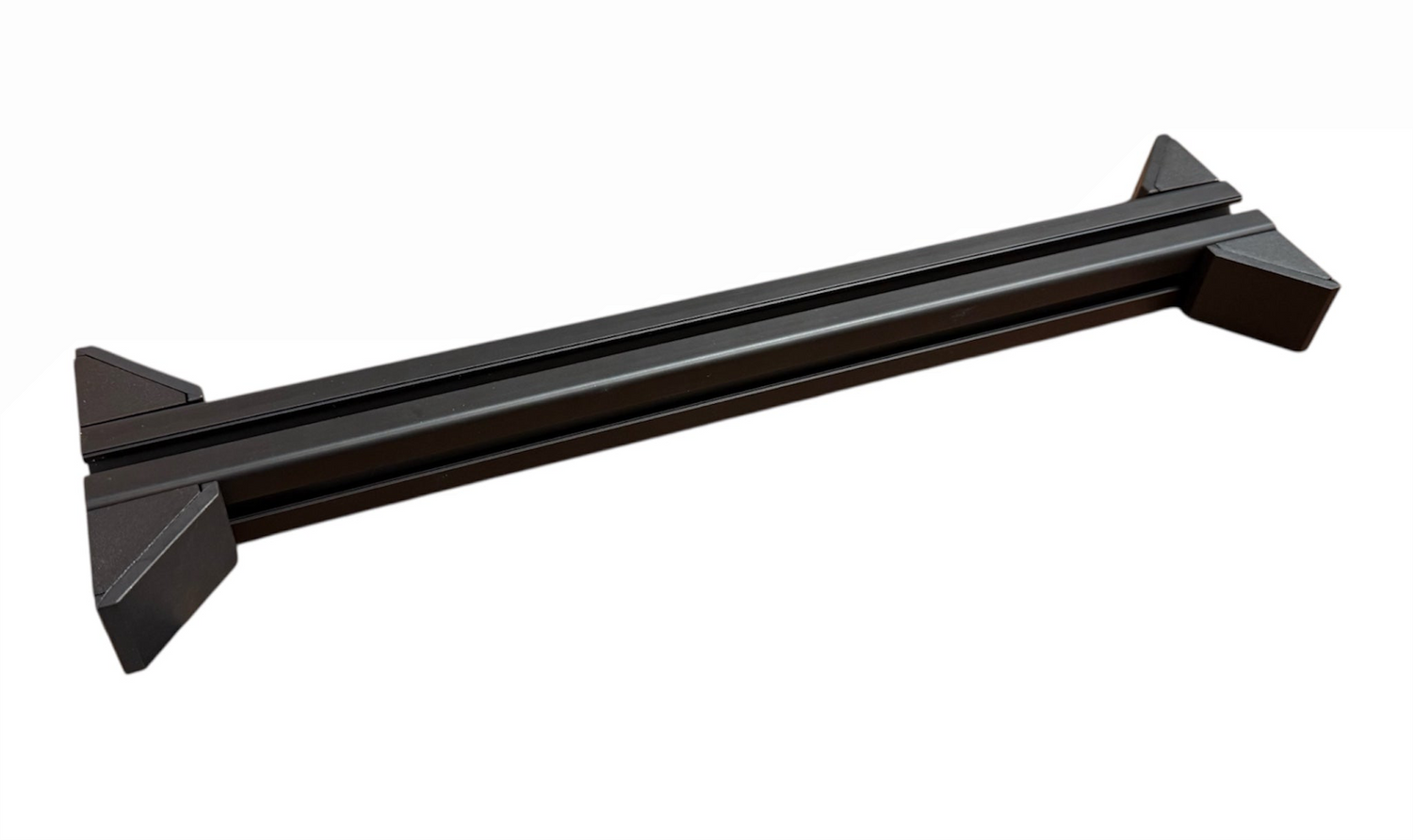

Start by assembling the angle brackets onto both of the profiles with the angled cuts
monitor mount

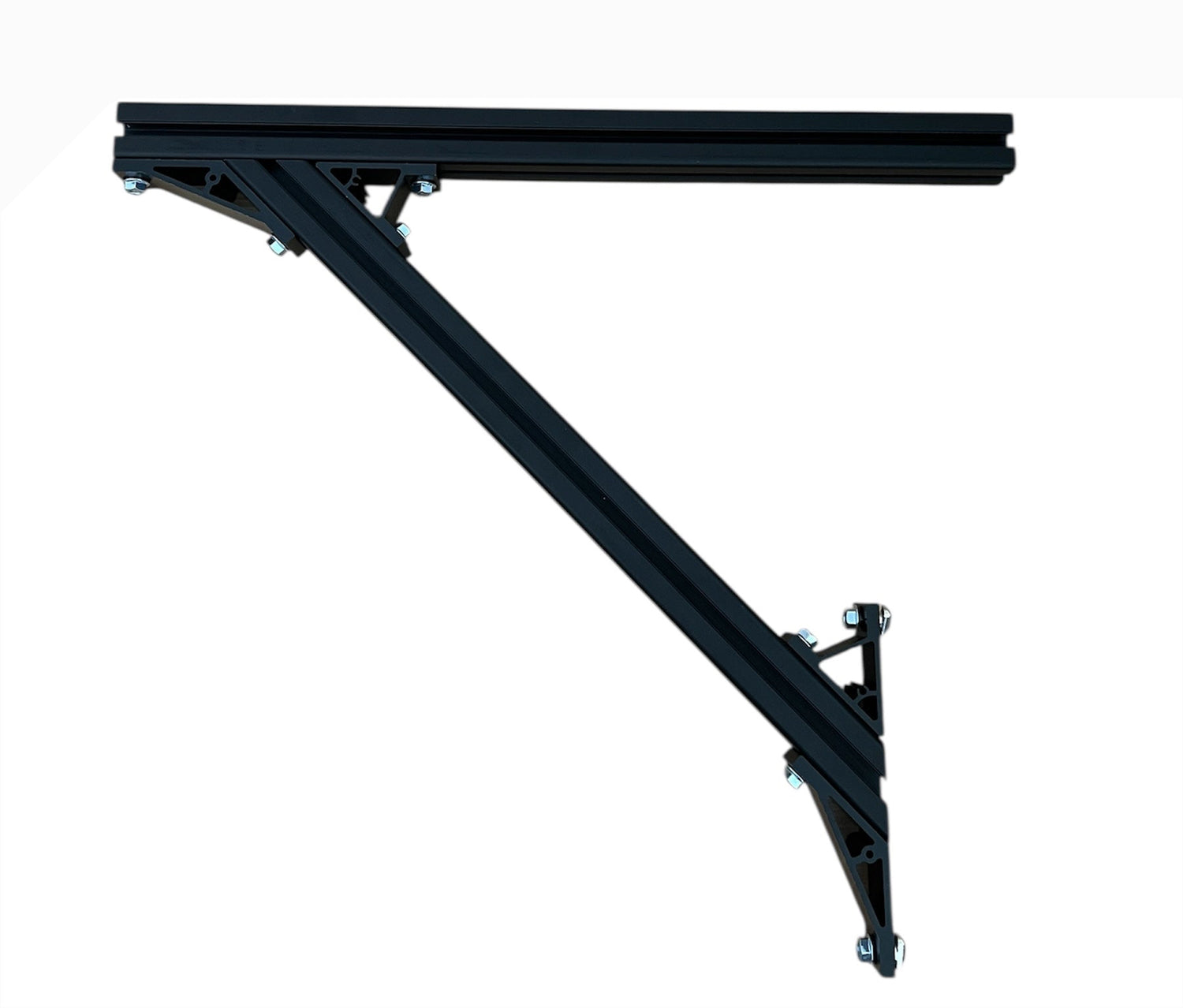

Add a straight piece to the top.
monitor mount
Add brackets to the end
monitor mount

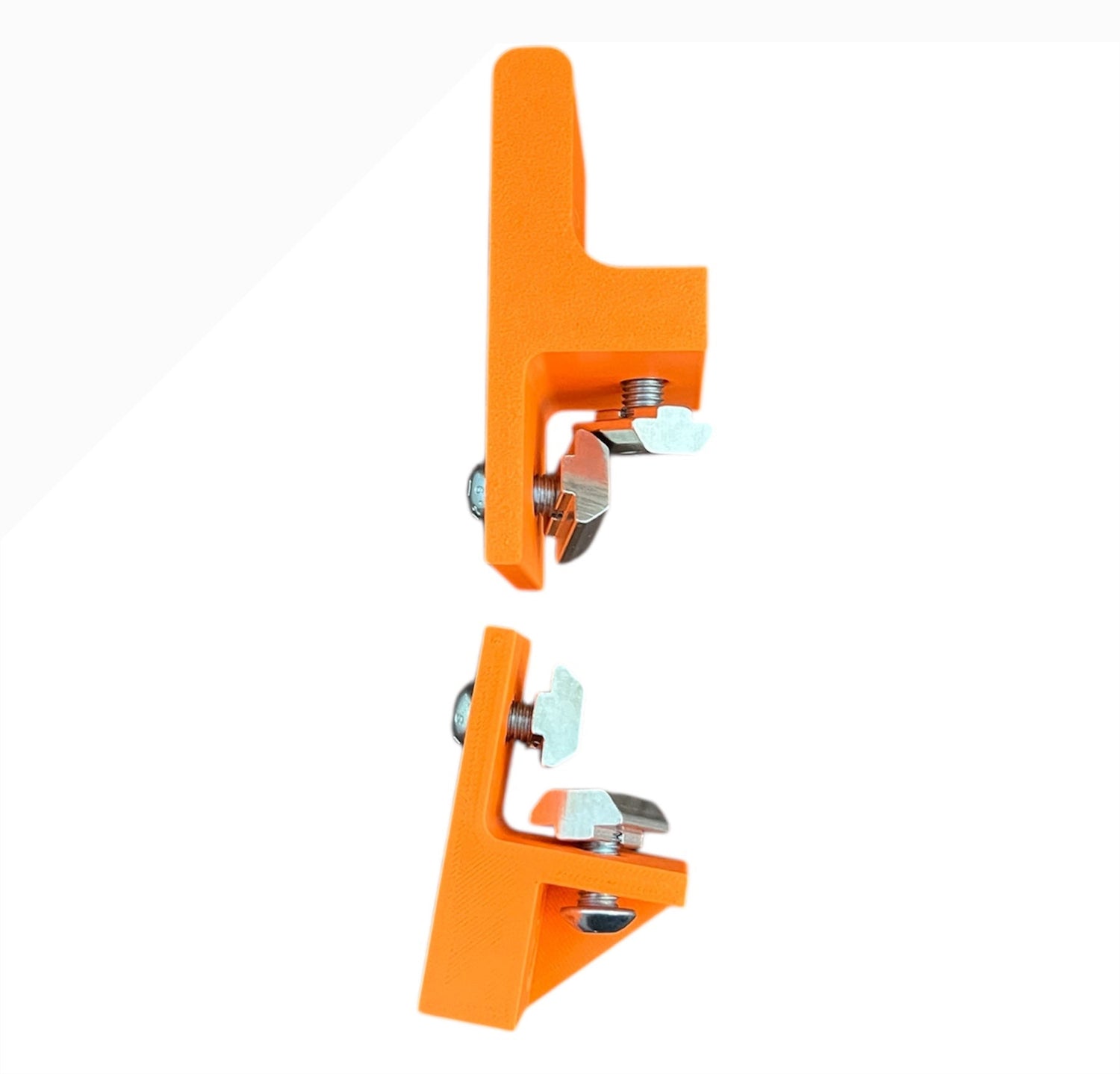

If extra height is needed add the L bracket to the top instead of the bottom.
Monitor mount

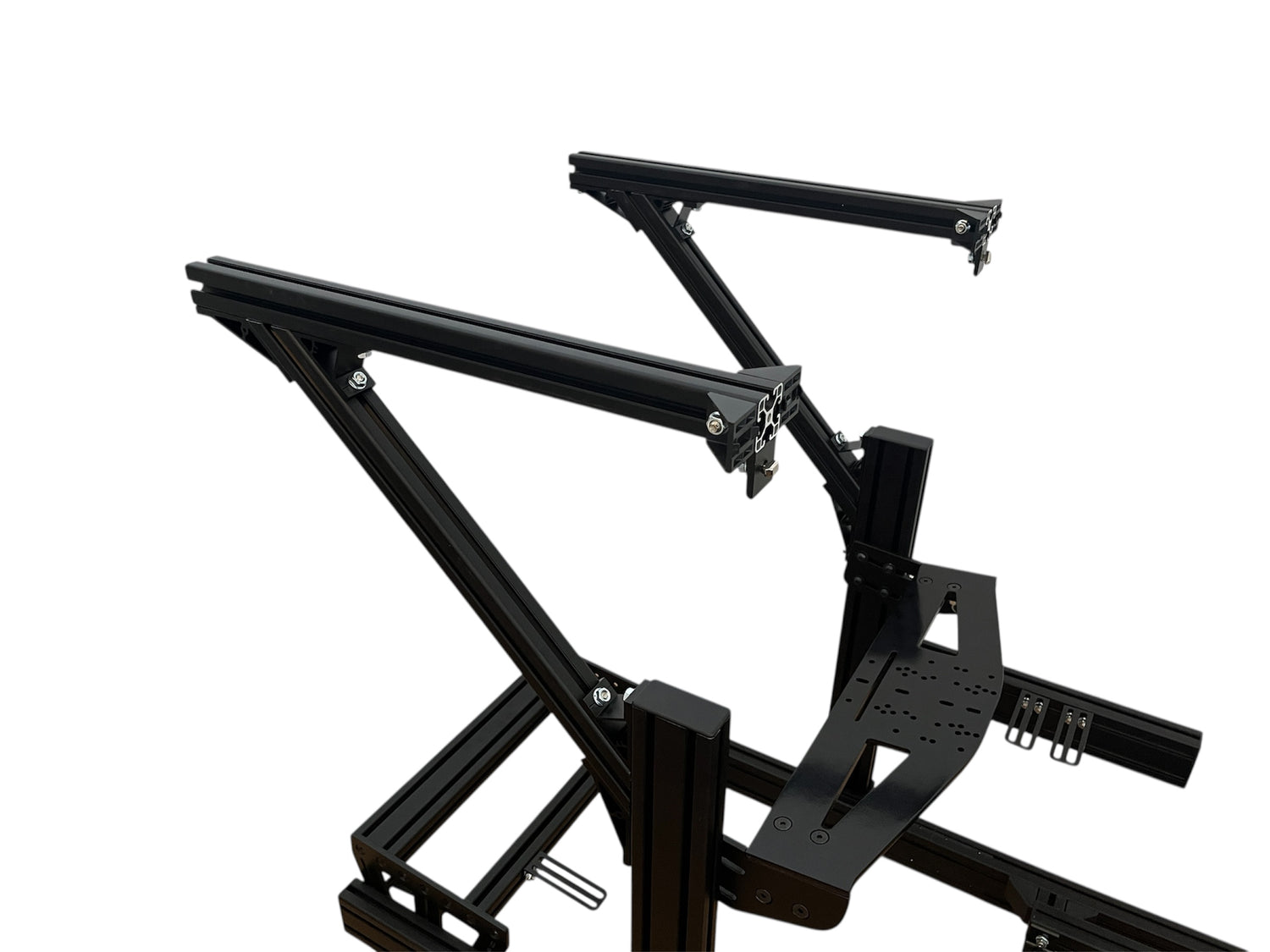

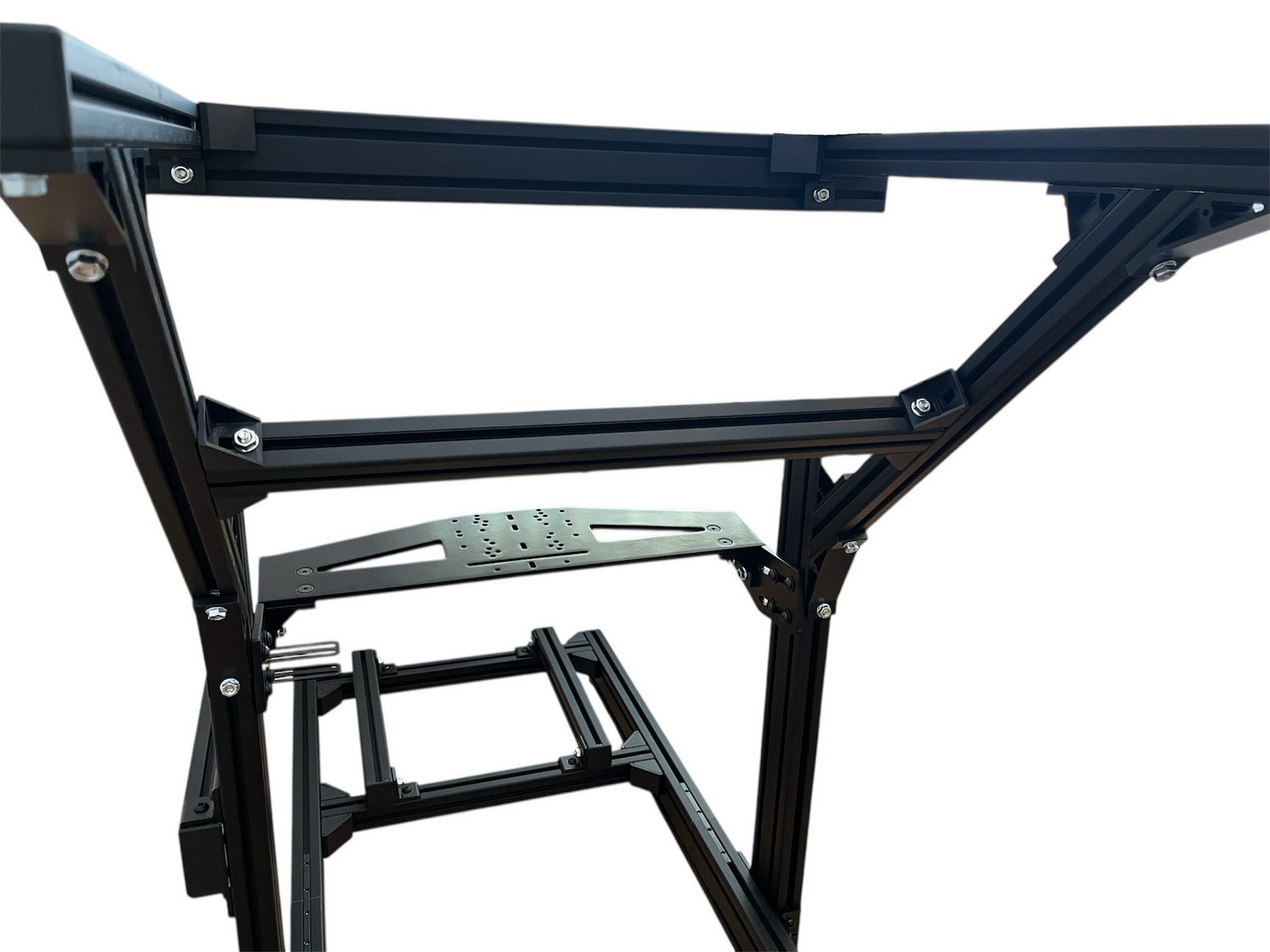

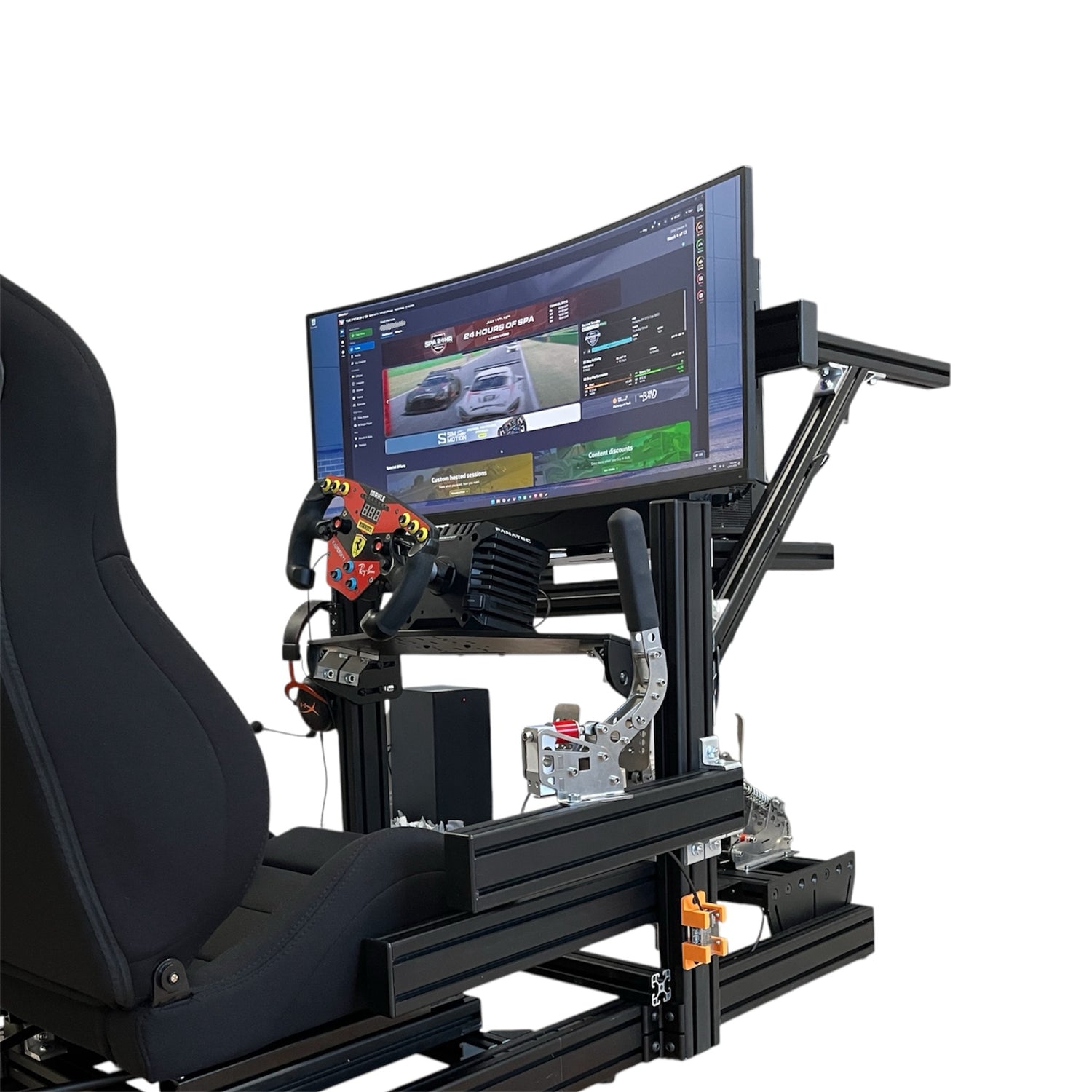

Attached these to your rig
Monitor mount

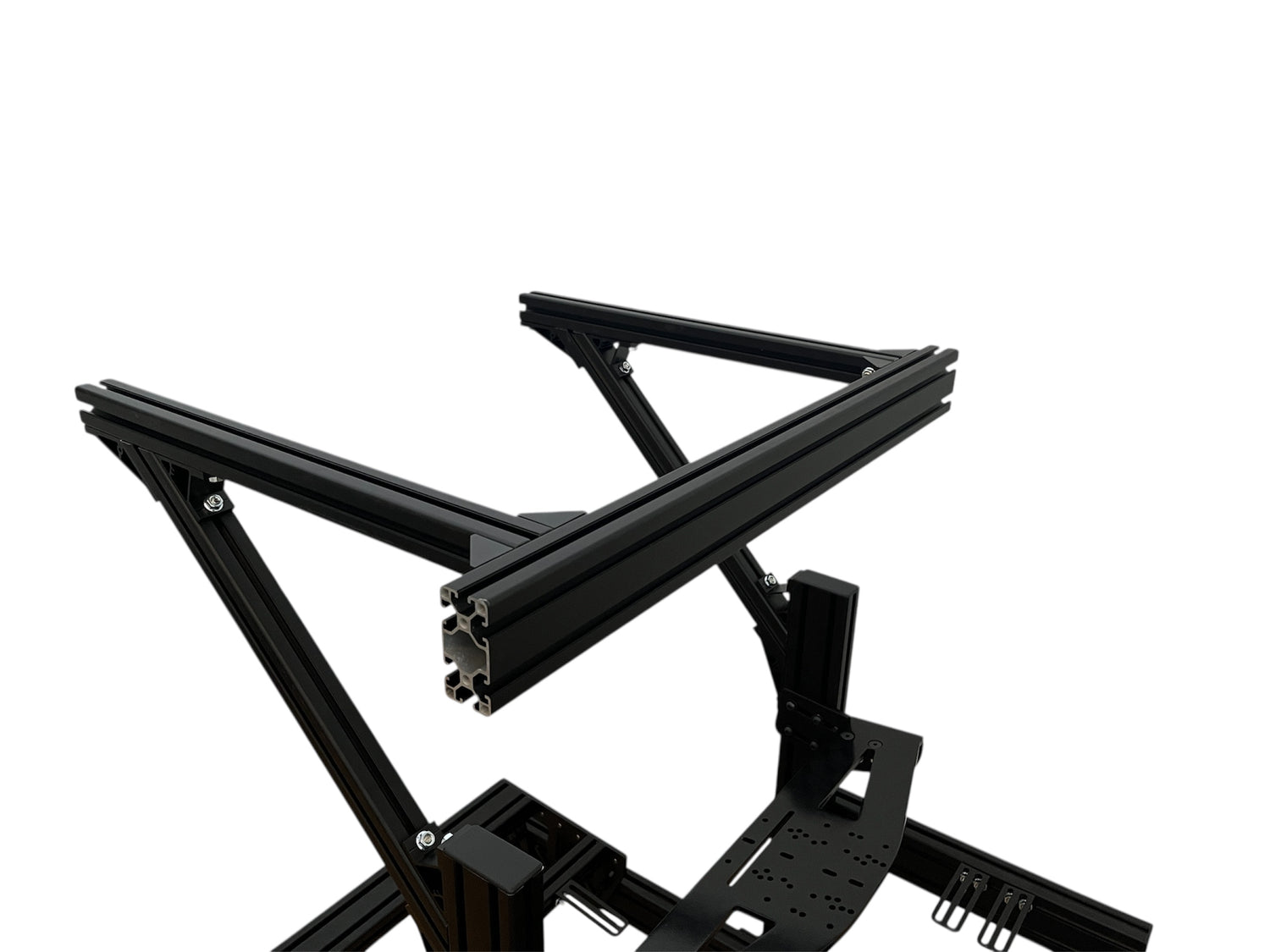

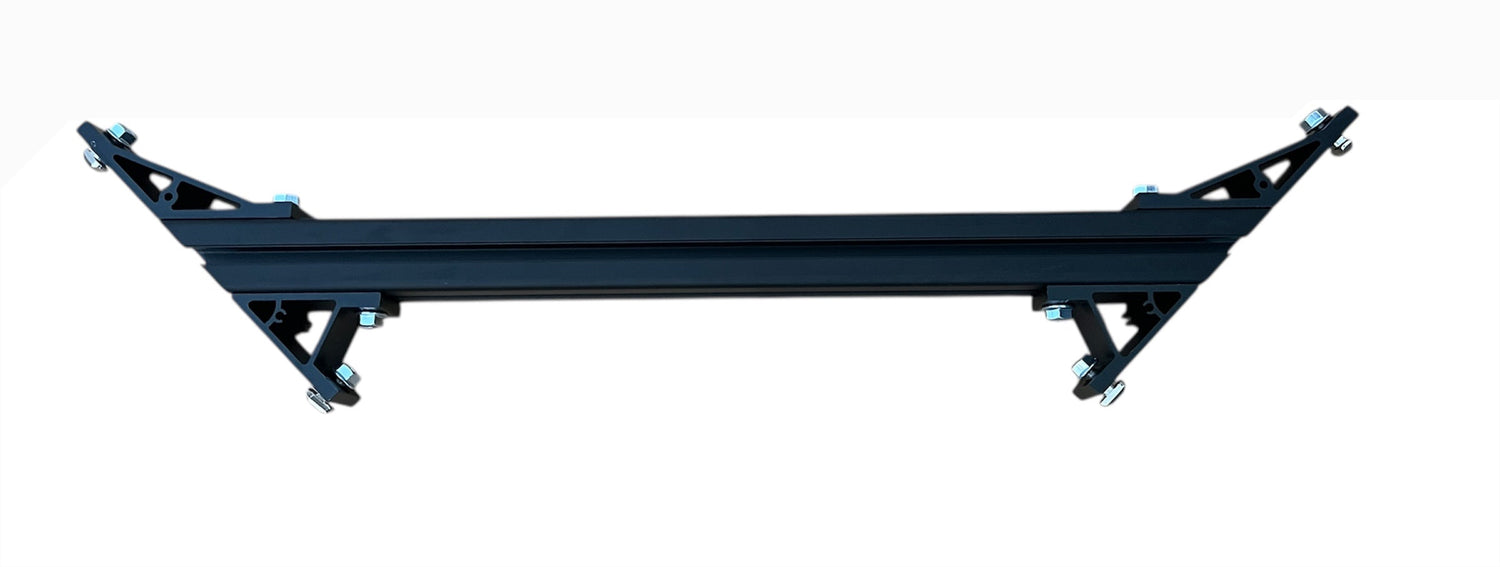

Attach the 4080 bar to the front. At this point it is quite normal to have some wobble. The extra brace in the next step significantly improves this.
Monitor mount

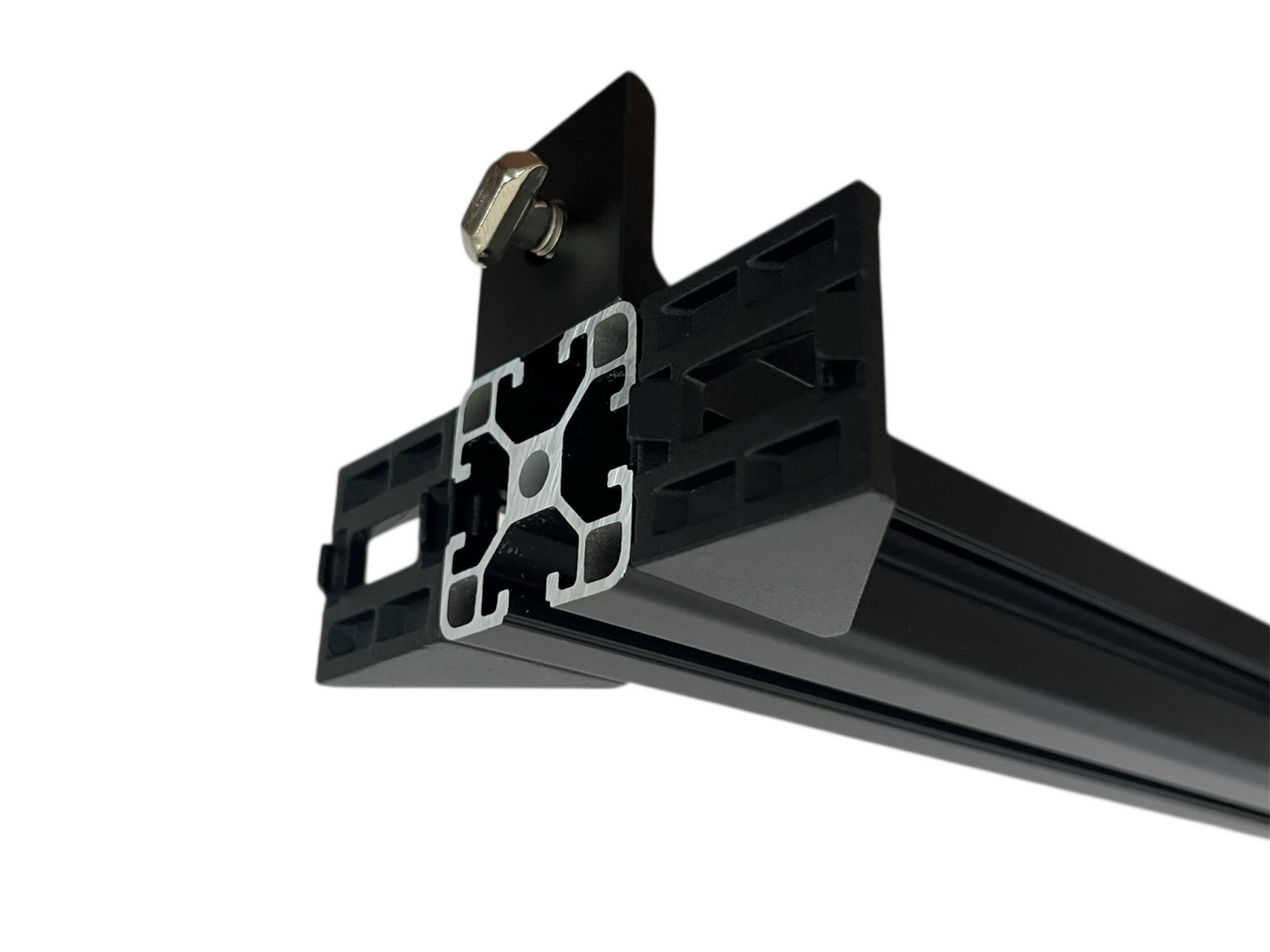

Preassemble the monitor mount brackets
Monitor mount

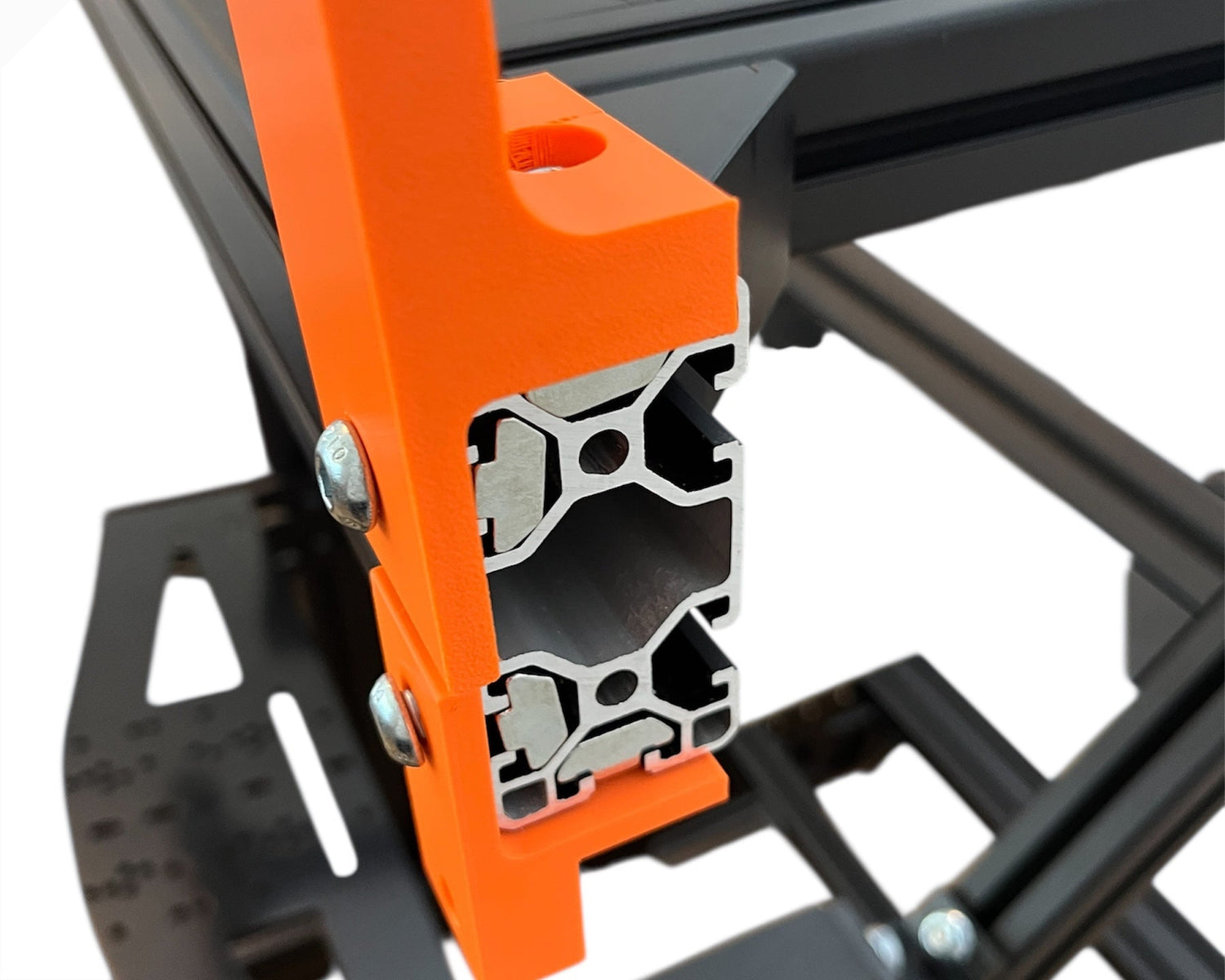

Slide the monitor brackets onto the profile
Monitor mount

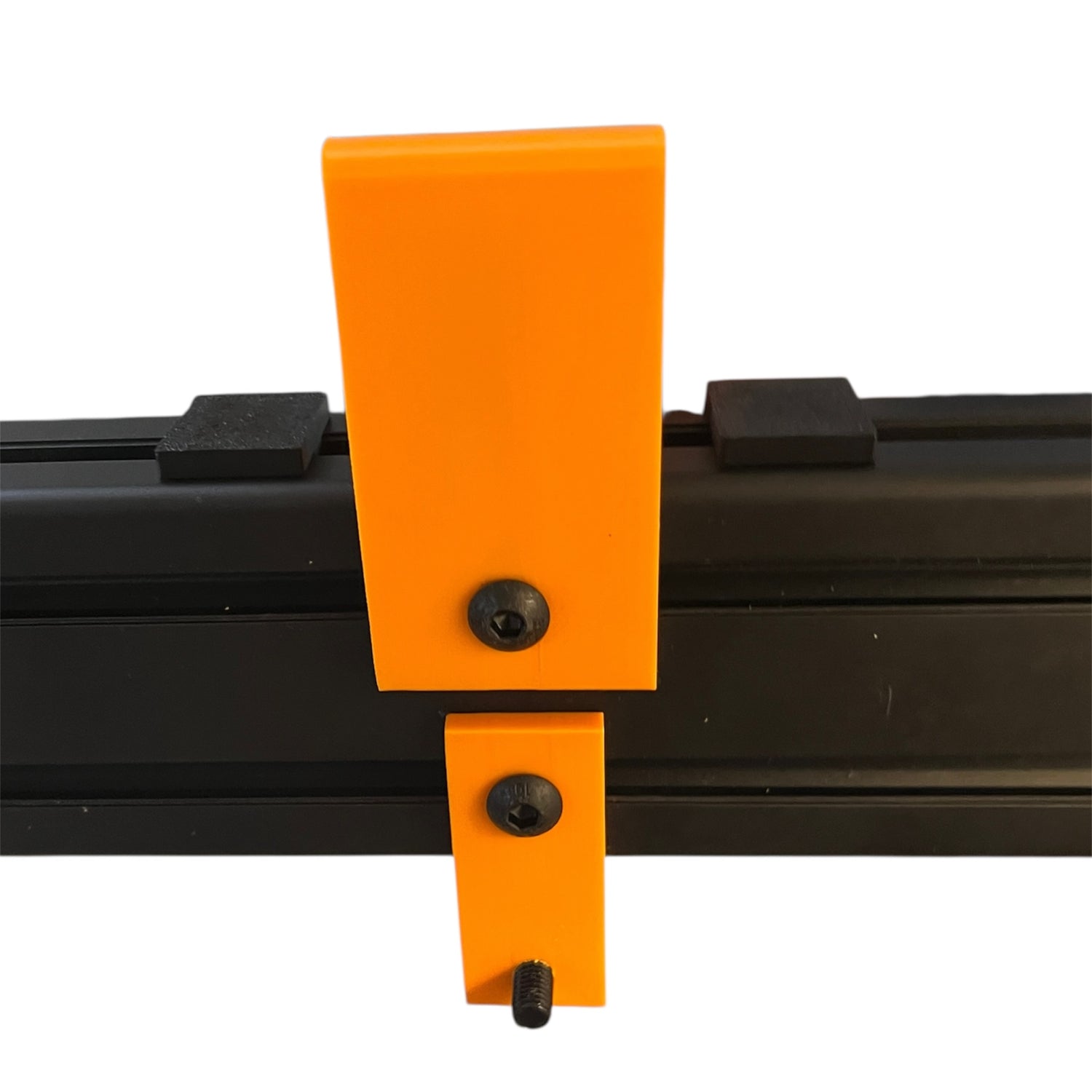

Move the monitor brackets to approximately the centre of the bar.
The small caps sit in the slot loose.
Monitor mount

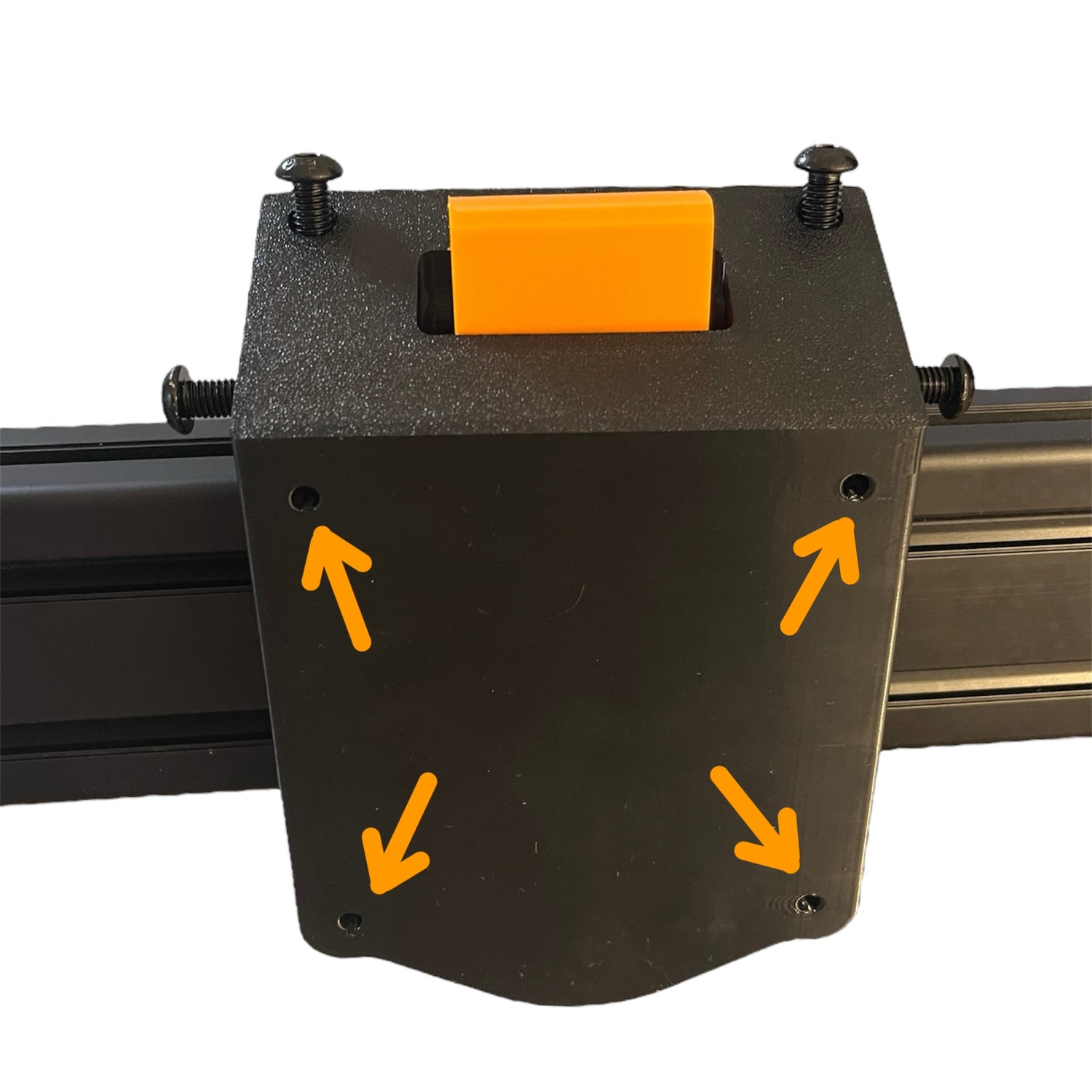

Use these holes and the bolts included to attach to the back of your monitor.
Please note some monitor may come with adapter bracket and some TVs might not have a 100x100 bolt pattern.
If there is any issues please
Monitor mount
Thread the long bolts into the bracket attached to the back of the monitor and drop into position
Monitor mount
Add the brace in between the angled arms
Monitor mount

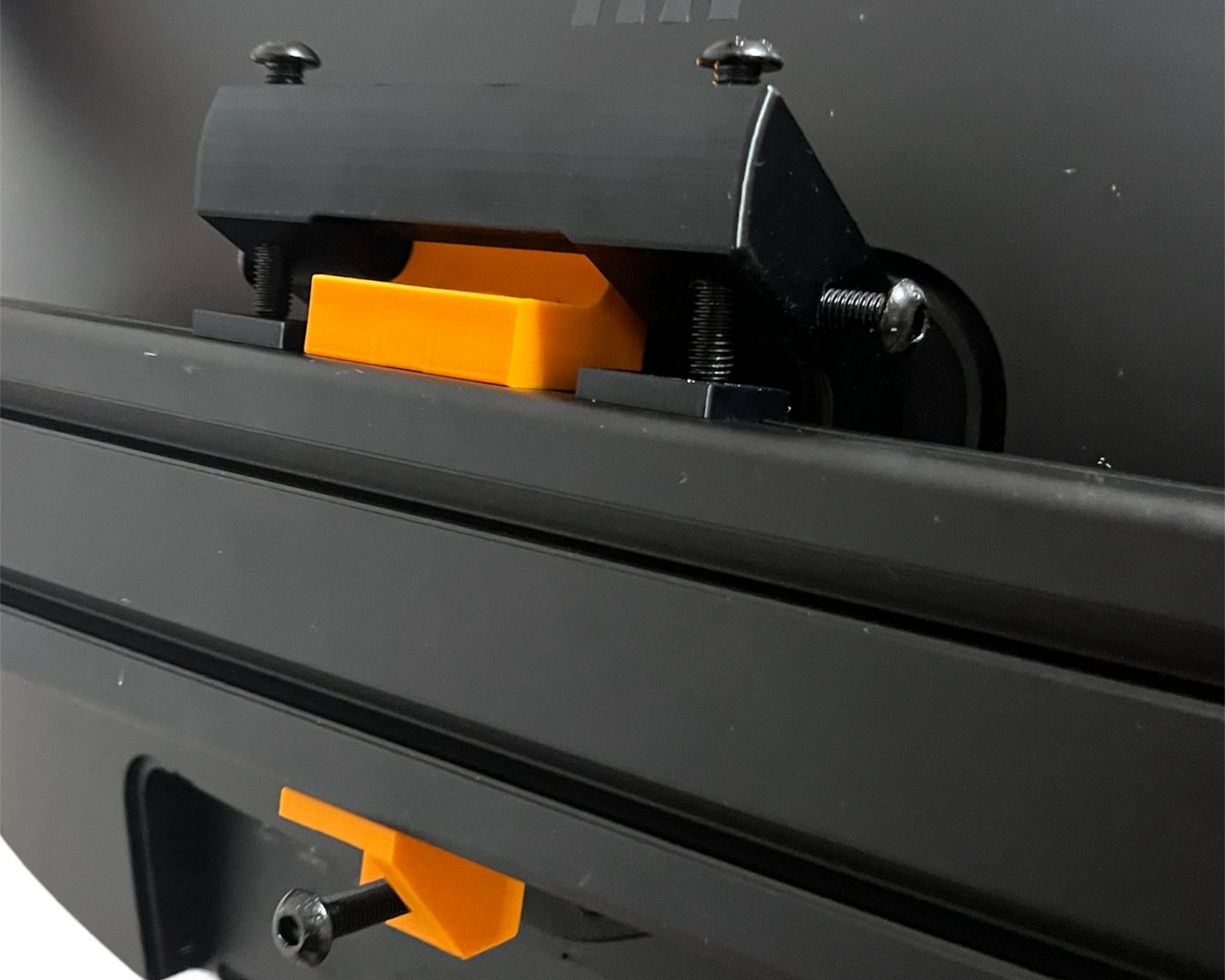

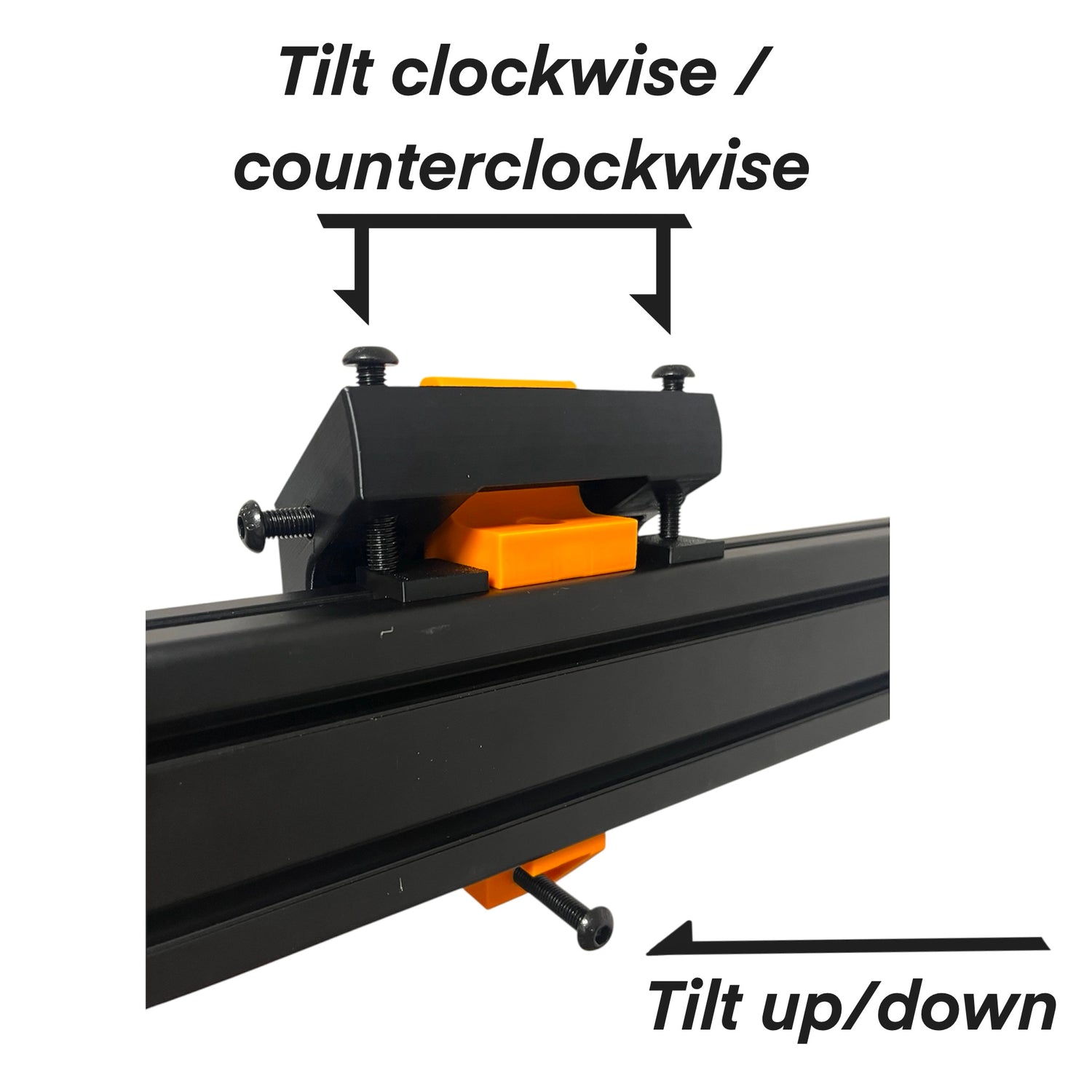

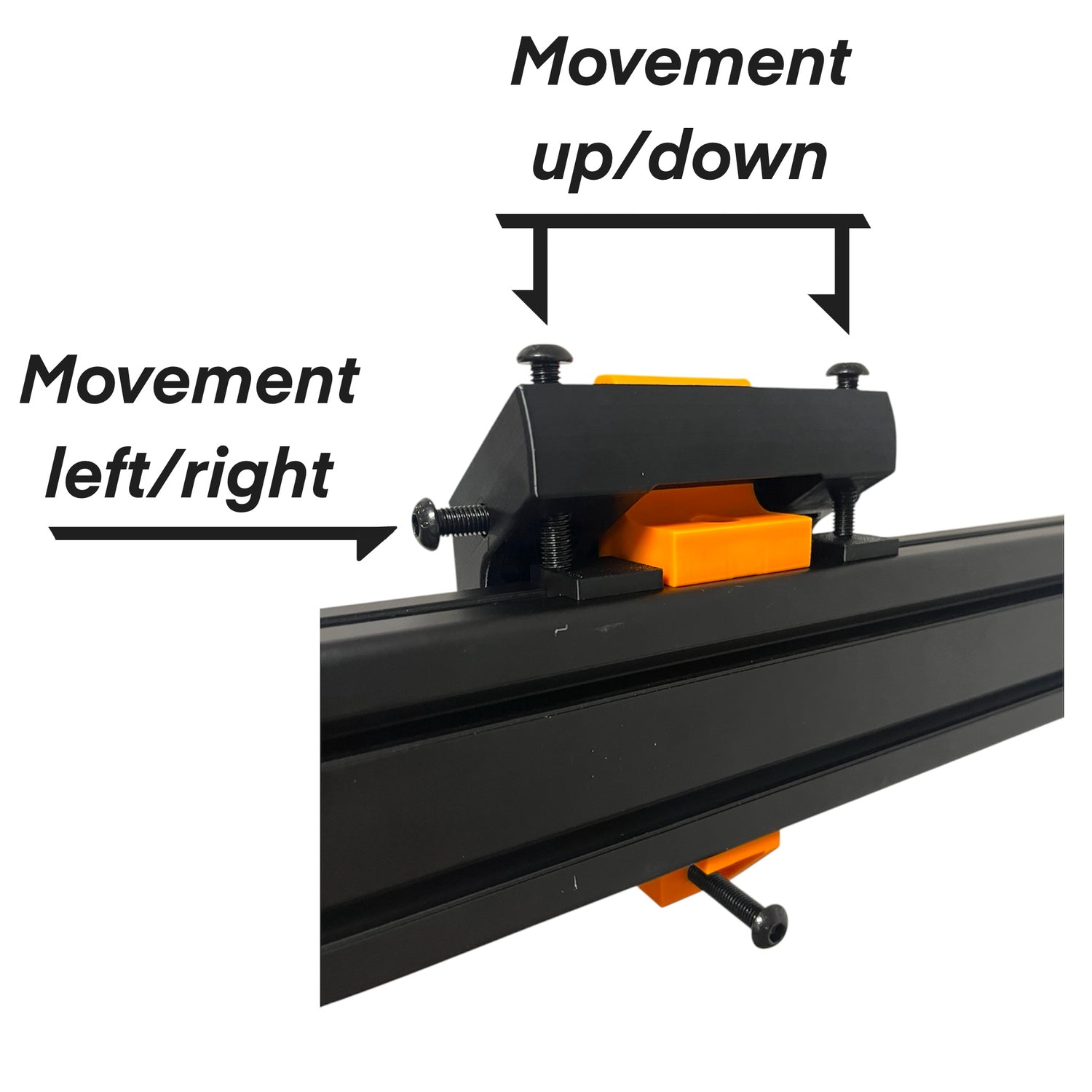

Use the screws to adjust the monitor mount
Monitor mount
Use the screws to adjust the monitor mount.
Once you are happy with the monitor position screw in the left/right movement screw down to clamp the parts together. Be careful tightening because the treads are plastic, a little more than finger tight is a good amount.
Monitor mount

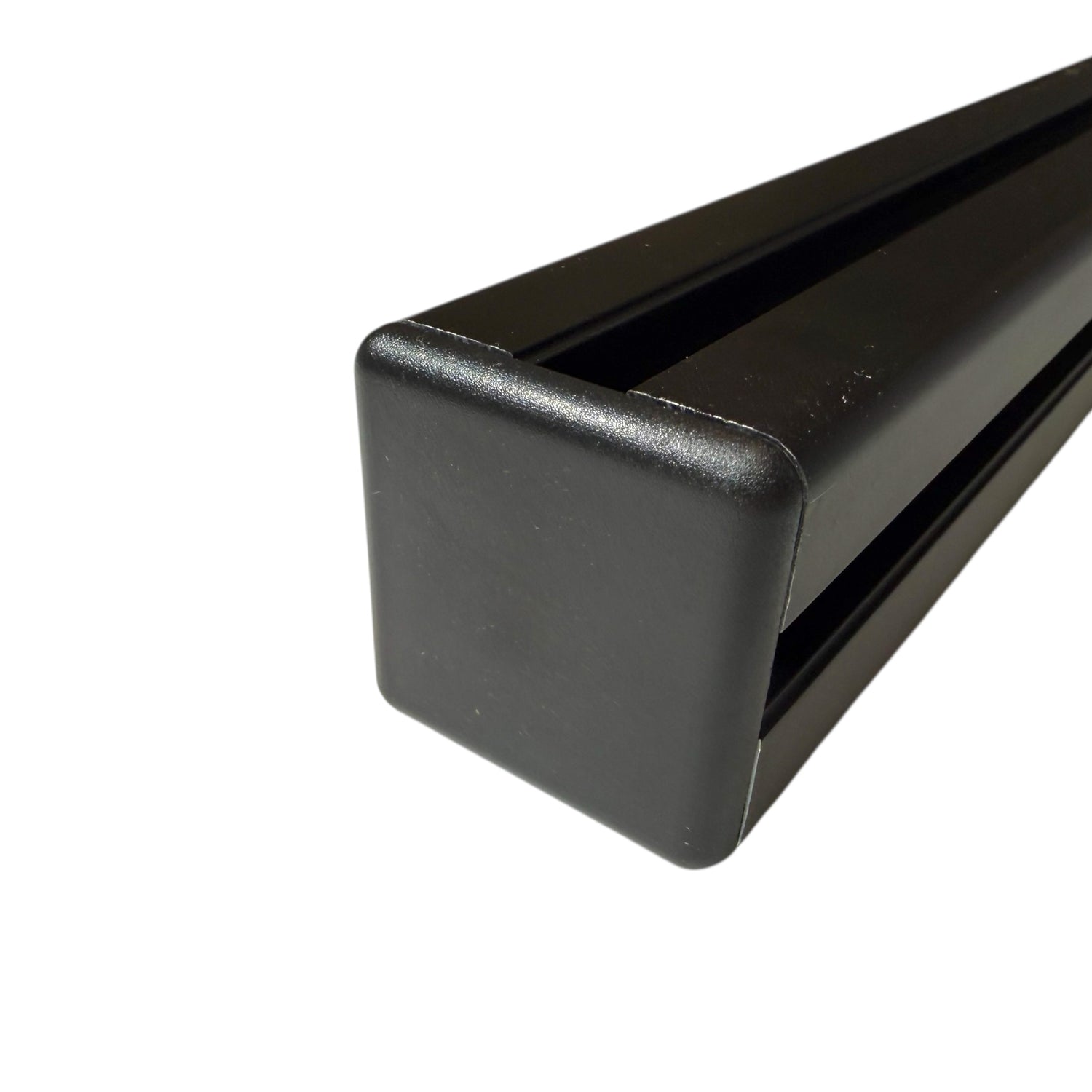

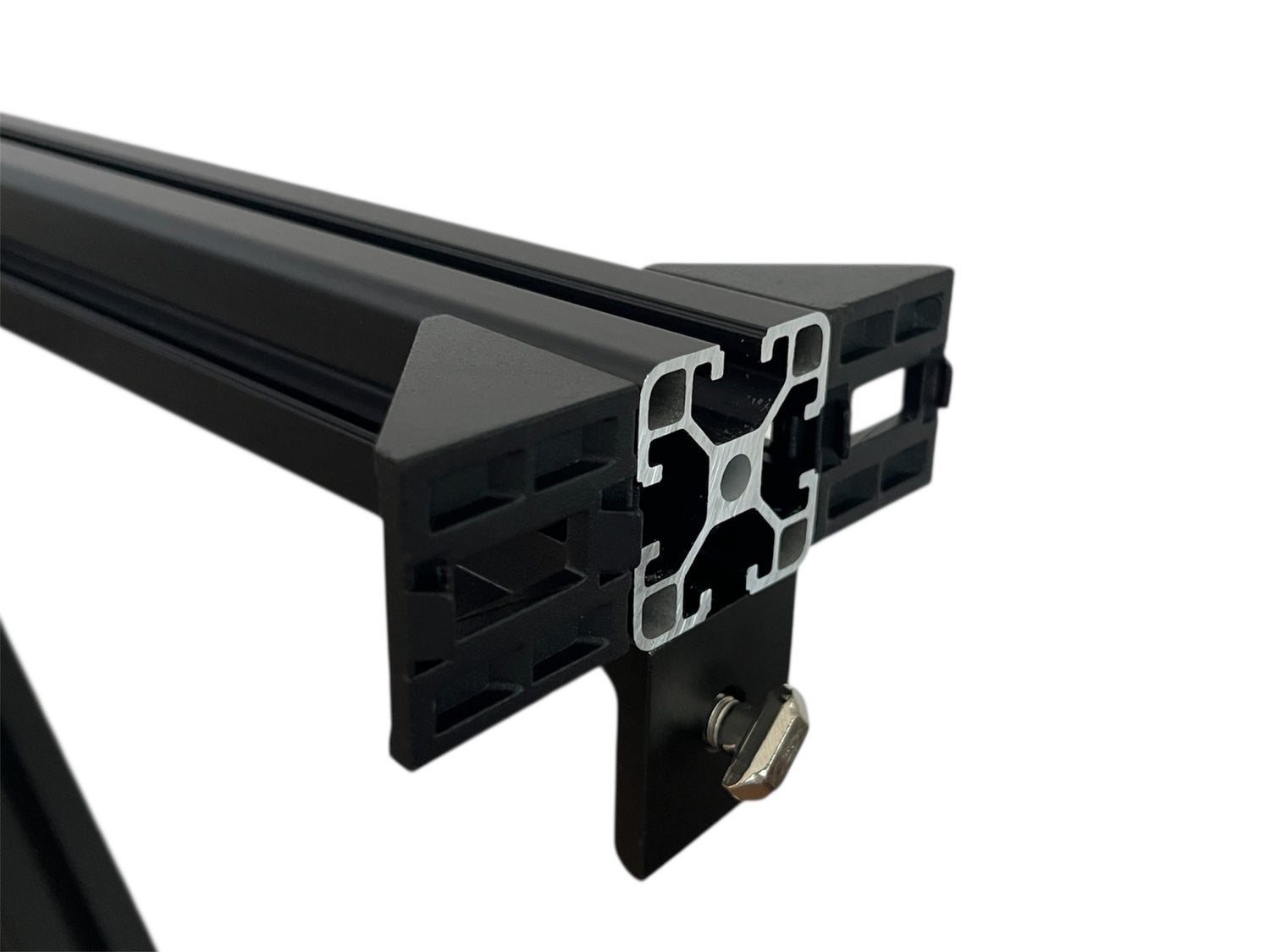

Add caps to all the open ends
