CSR1C Collapsible Profile Sim Rig
Our collapsible sim rig design.

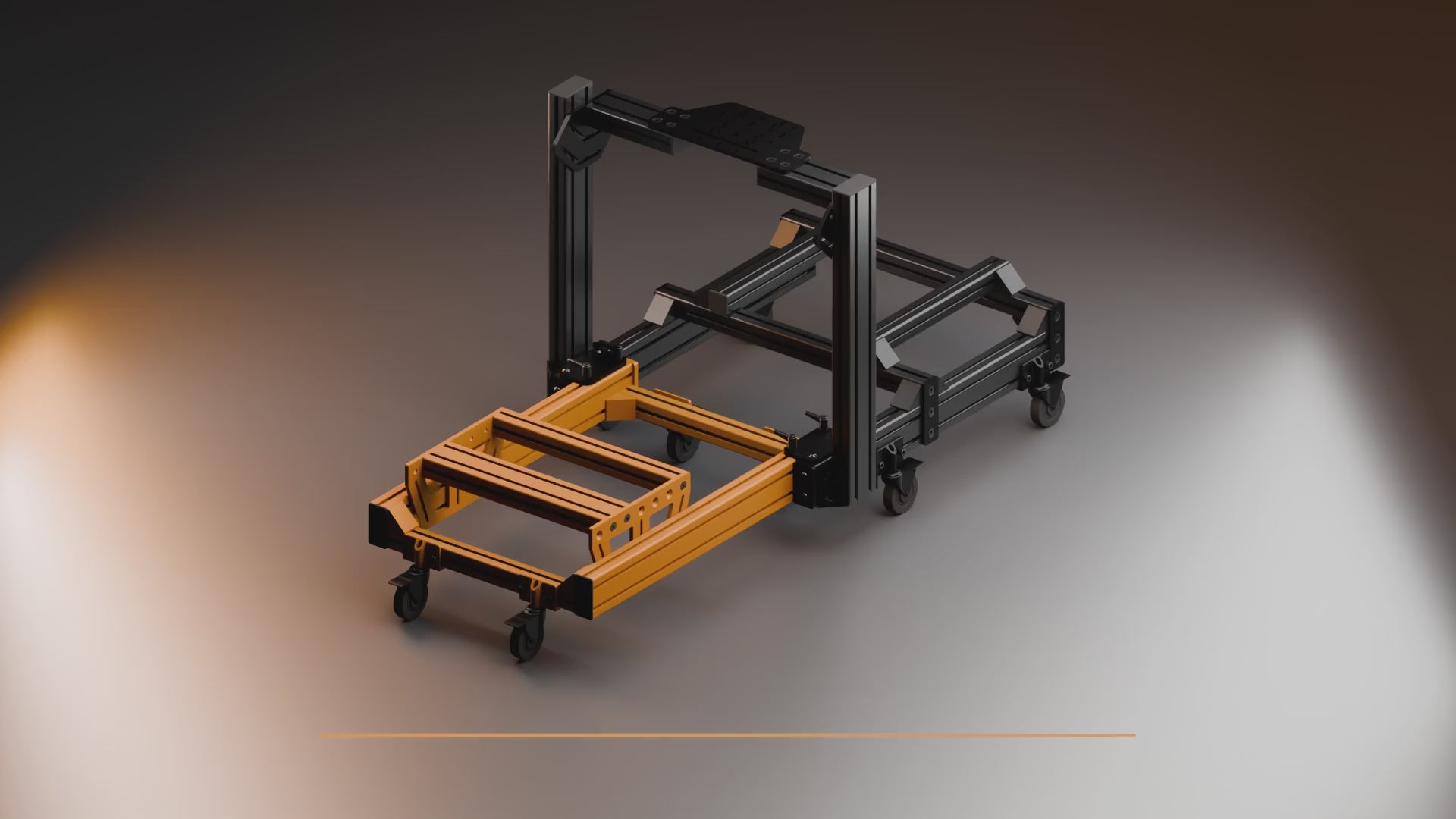

Keep the family happy and the house clean whilst still enjoying a super rigid sim racing experience with a collapsible profile sim. The CSR1C draws heavily from the CSR1’s function first design philosophy but adds a sliding pedal area to easily collapse the rig into a super compact box. Each rig has 8 caster wheels included by default to support the rig and to make it easy to manoeuvre in compact spaces. This rig is perfect for apartments or bedrooms or any cramped space where you don’t want to compromise on performance.
All the tools needed to assemble the rig are included in the box. The cable management clips included with the CSR1 tuck cables neatly into the frame, keeping them out of sight, creating a crisp, clean look and feel.
Our design goals are
What's in the box?
What’s not in the box?

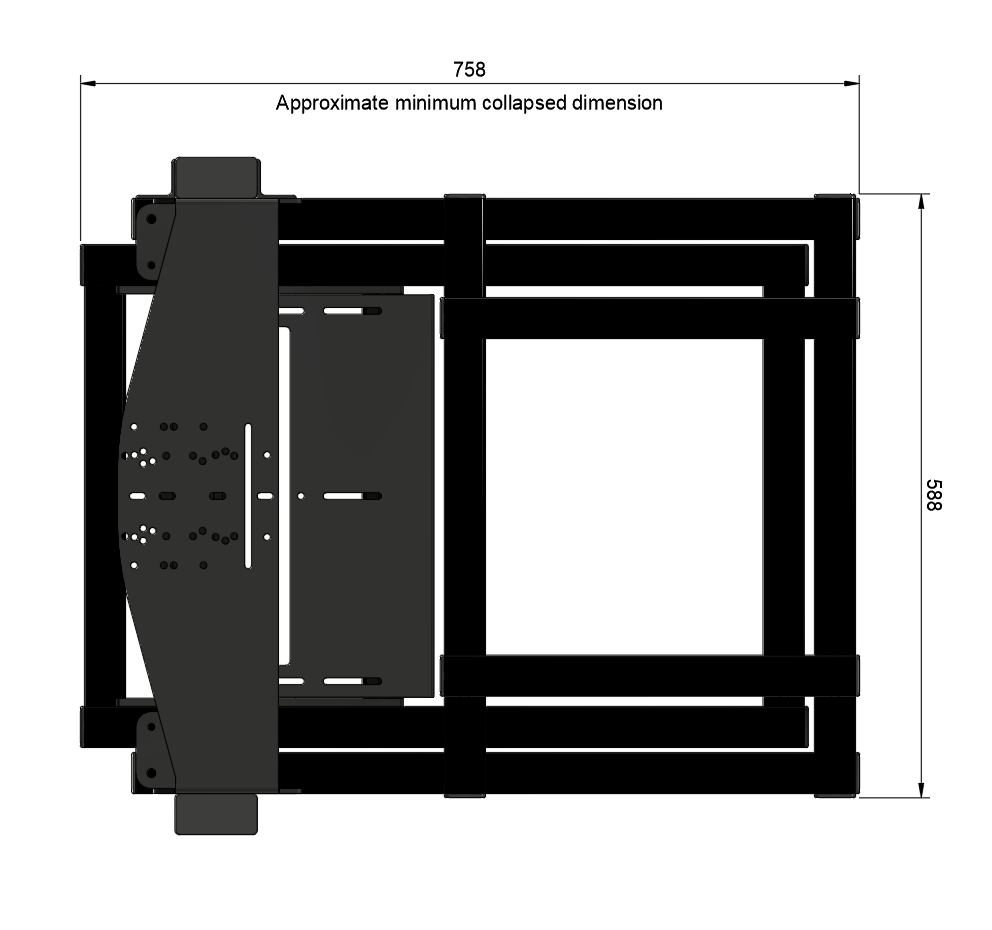

Collapsed Dimensions
The CSR1C has a minimum collapsed length of approximately 750mm. The real world length can be variable based on the seat and pedal arrangement.

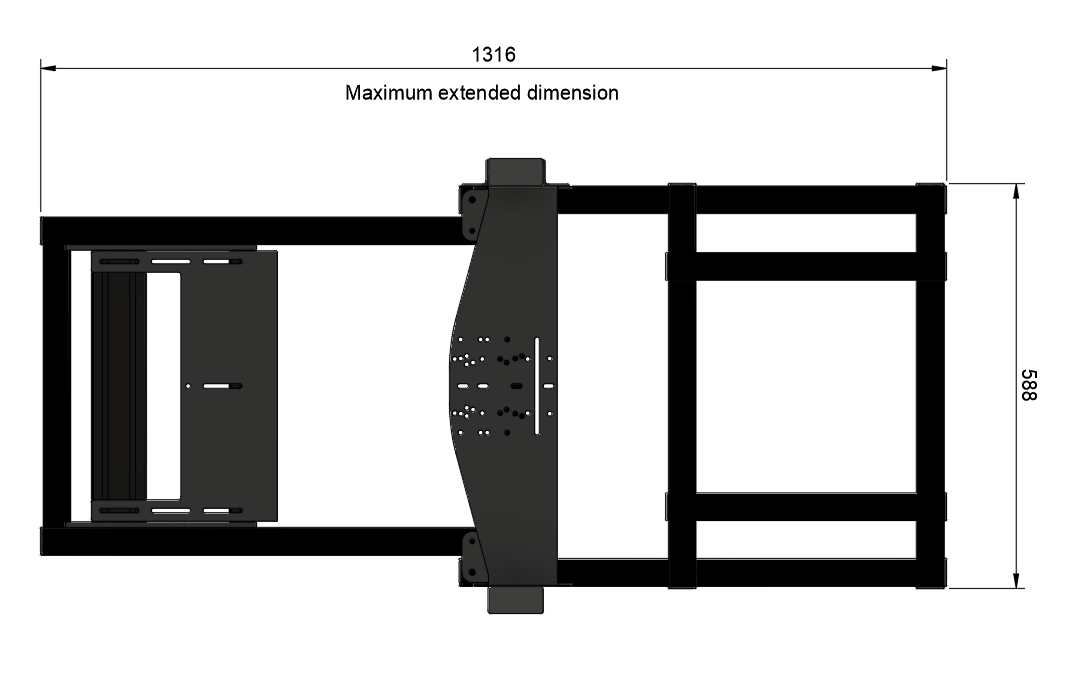

Extended Dimensions
The extended length is approximately 1300mm.
Caption

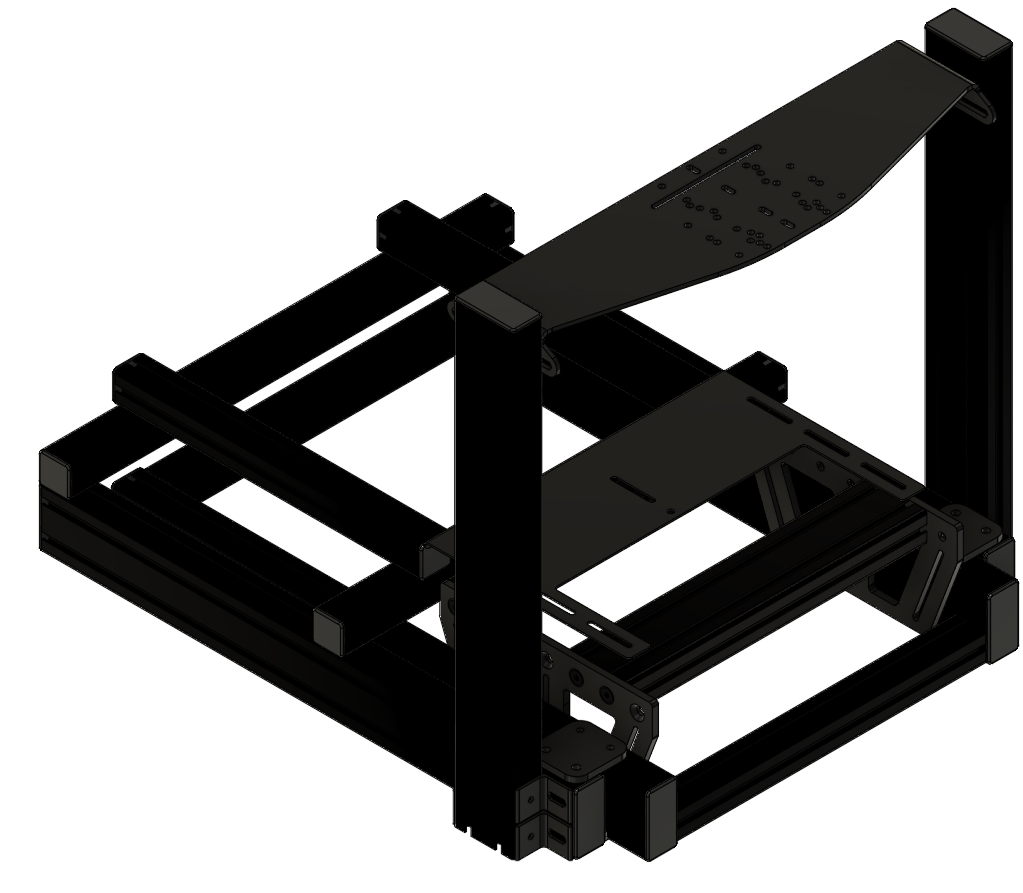

Upright Dimensions
The CSR1C uses the same base kit as the CSR1 rig however the uprights are 600mm (100mm shorter).
Compatibility
The wheel plate comes predrilled for all major brands.
Asetek - Forte, Invicta, La Prima
CAMMUS - C5, C12
FANATEC - CSL DD, GT DD Pro, CSL Elite, Clubsport DD, Clubsport DD+, Prodium DD1, Produm DD2
Logitech - G920, G29, G27, G Pro
Moza - R3, R5, R9, R12, R16
Simagic - Alpha Mini, Alpha, Alpha U
Thurstmaster - T818, T598, T300
Our pedal plate is profile based so any top down pedal mounting (SIMSONN, Heusinkveld, Simucube etc.) is able to be bolted directly to the aluminium profiles.
For underside mounting brackets are included to easily attach the majority of pedal sets to the aluminium profile.
CAMMUS - LC100, CP5
FANATEC - CSL, CSL Elite, Clubsport (any)
Logitech - G920, G29, G27, G Pro
Moza - CRP, SRP
Simagic - P500, P1000 (any), P2000
Thrustmaster - T-LCM, T3P
We include a range of brackets for mounting a wide range of handbrakes and shifters.
The universal brackets are light - medium duty and accept a wide range of shifter and bolt patterns. These brackets are included as part of the kit.
See what our customers have to say
Yes, we can modify the rig to suit any use case.
Not as standard, but if this is needed, we will move this improvement forward on the roadmap!
We can offer an assembly service on request only.
If you’re unsure, send us an email with your order number and we will make sure your gear will work with our equipment, including a custom modification, if necessary.
Yes, the 40x80 profile in the CSR product has a 2mm wall thickness and is very strong. Most of the flex in any rig is from the connectors, and each of these has been selected using our extensive industrial design experience to ensure minimal flex. The CSR1 has then been meticulously tested to ensure great rigidity.
Or need a custom design?
