CSR120 GT Profile Sim Rig

$899.00 AUD

Wheelbase mounting Bottom Front

End plate Excluded Included (for motion)

The CSR120 is our maximum strength design. We have kept the value, utility first design approach from the CSR1 but stepped up all the components.

40x120 profiles
2mm thicker aluminium plates
Shifter bar reinforcement
More adjustable pedals with sliding pedal bars
Independent leveling feet making it easier to get in and out of
Single piece horizontal bars
Front mount option

What's in the box?

All profiles and fasteners needed. This rig primarily uses 40x120 profiles.
CSR profile-based pedal mounting system
CSR designed v2 top or front mount plate.
Cover caps for all exposed profiles
Aluminium profile and universal brackets for handbrake mounting
Aluminium profile to connect a seat
A set of cable clips
Rubber leveling feet
Allen key (hex) set
Spirit level
13mm spanner

What’s not in the box?

Seat
Seat brackets or sliders
Monitor mounting

Styled With

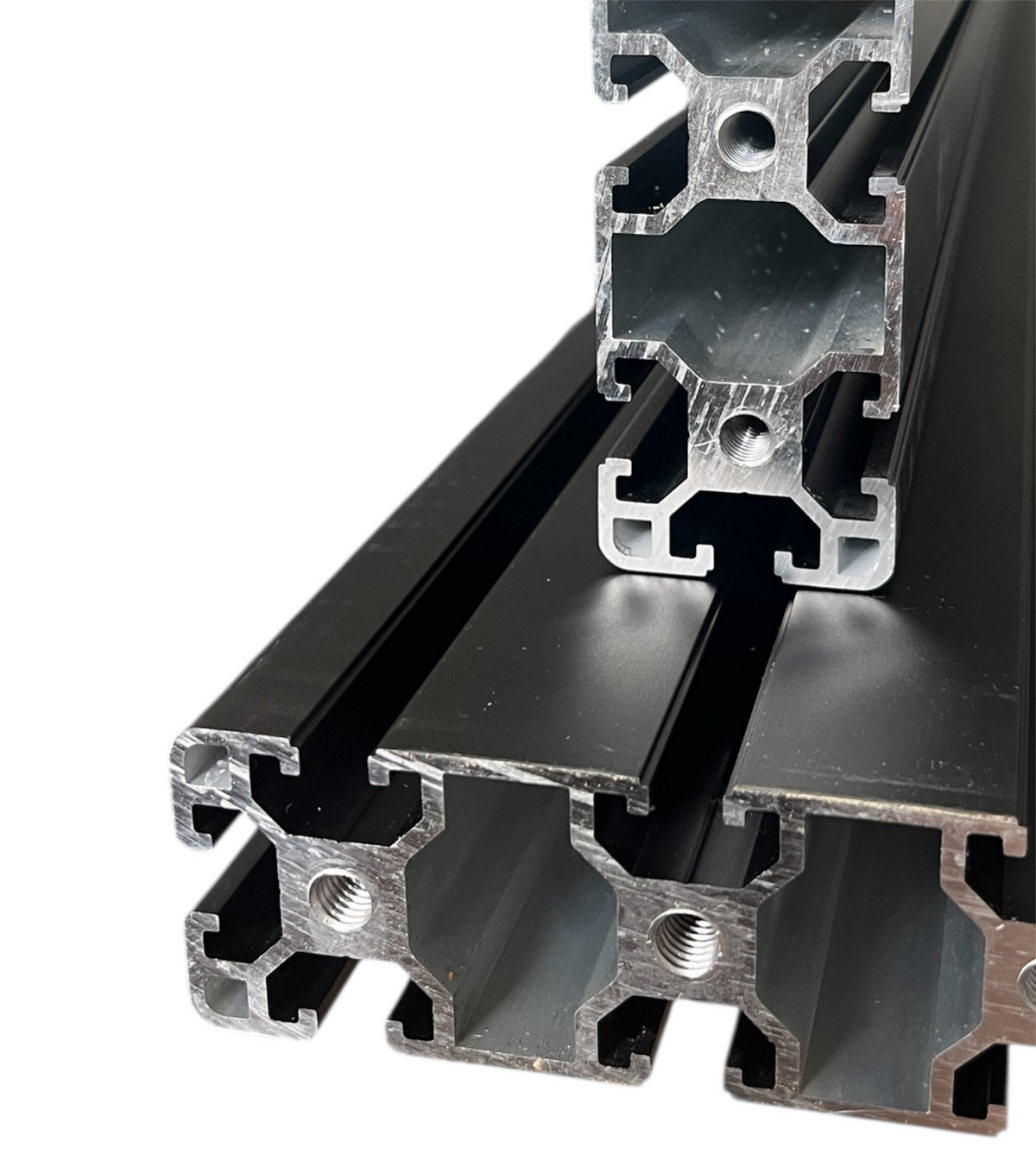

Aluminium profiles

The CSR120 has the thickest aluminium we offer. The horizontal beams weigh a whopping 6.5kg EACH

Compatibility

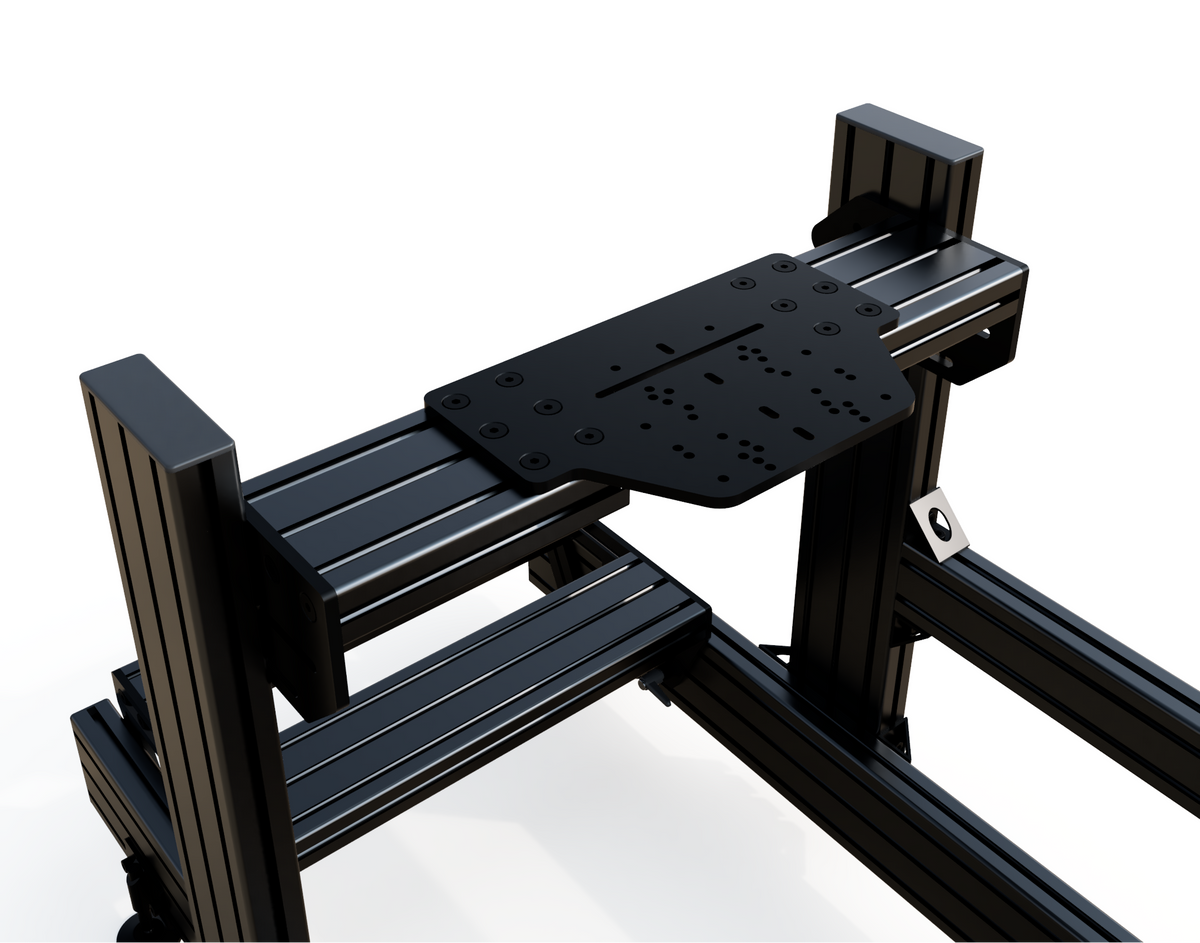

Wheel Plate

The wheel plate comes predrilled for all major brands.

Asetek - Forte, Invicta, La Prima
CAMMUS - C5, C12
FANATEC - CSL DD, GT DD Pro, CSL Elite, Clubsport DD, Clubsport DD+, Prodium DD1, Produm DD2
Logitech - G920, G29, G27, G Pro
Moza - R3, R5, R9, R12, R16
Simagic - Alpha Mini, Alpha, Alpha U
Thurstmaster - T818, T598, T300

Wheel plate mounting guide

Front mount

The front mount version which accepts the majority of major brands wheelbases with square bolt patterns.

Minimum: 120mm diagonal PCD or 85mm x 85mm square

Maximum: 150mm diagonal PCD or 106mm x 106mm square

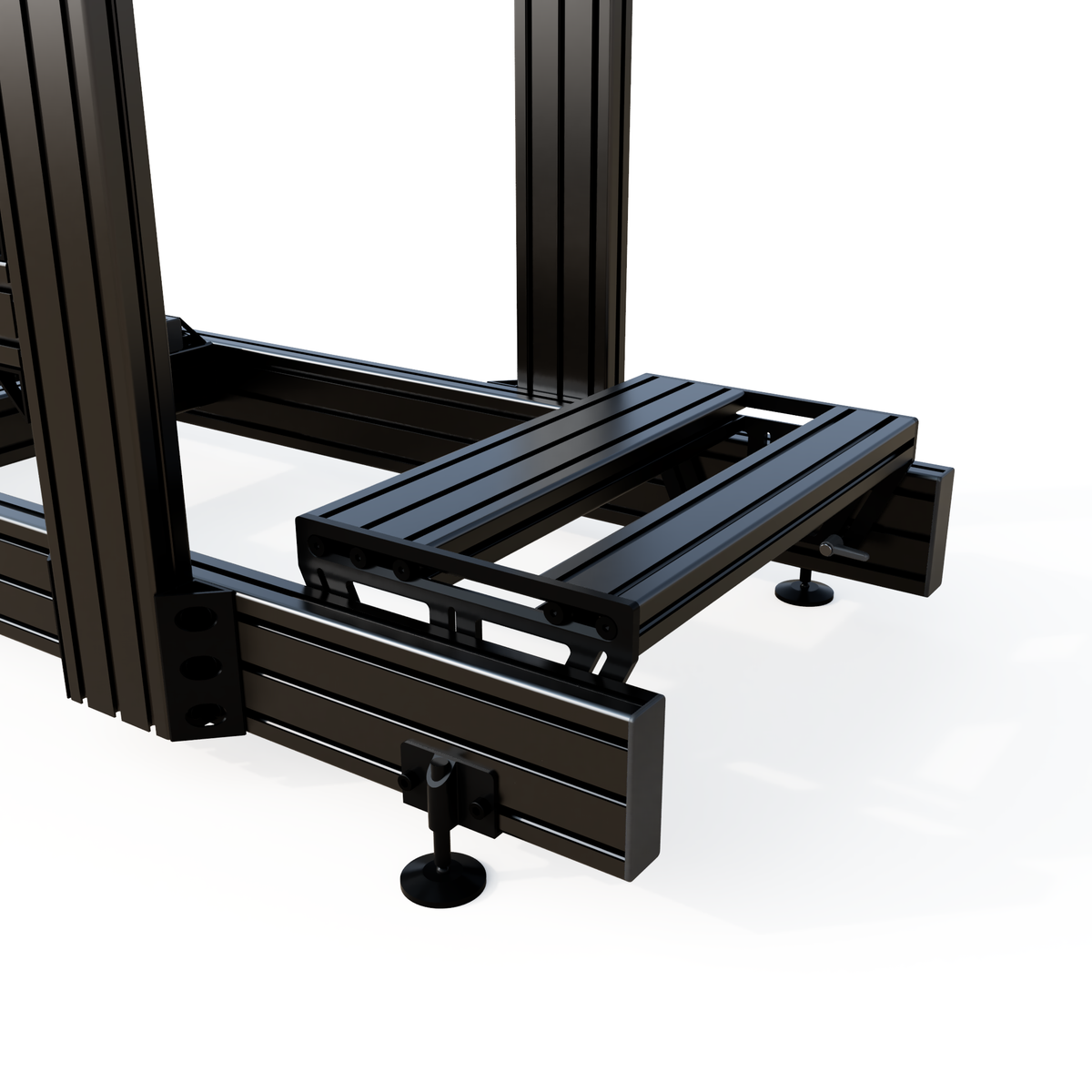

Pedal Plate

Our pedal plate is profile based so any top down pedal mounting (SIMSONN, Heusinkveld, Simucube etc.) is able to be bolted directly to the aluminium profiles.

For underside mounting universal brackets are included to easily attach the majority of pedal sets to the aluminium profile.

CAMMUS - LC100, CP5
FANATEC - CSL, CSL Elite, Clubsport (any)
Logitech - G920, G29, G27, G Pro
Moza - CRP, SRP
Simagic - P500, P1000 (any), P2000
Thrustmaster - T-LCM, T3P

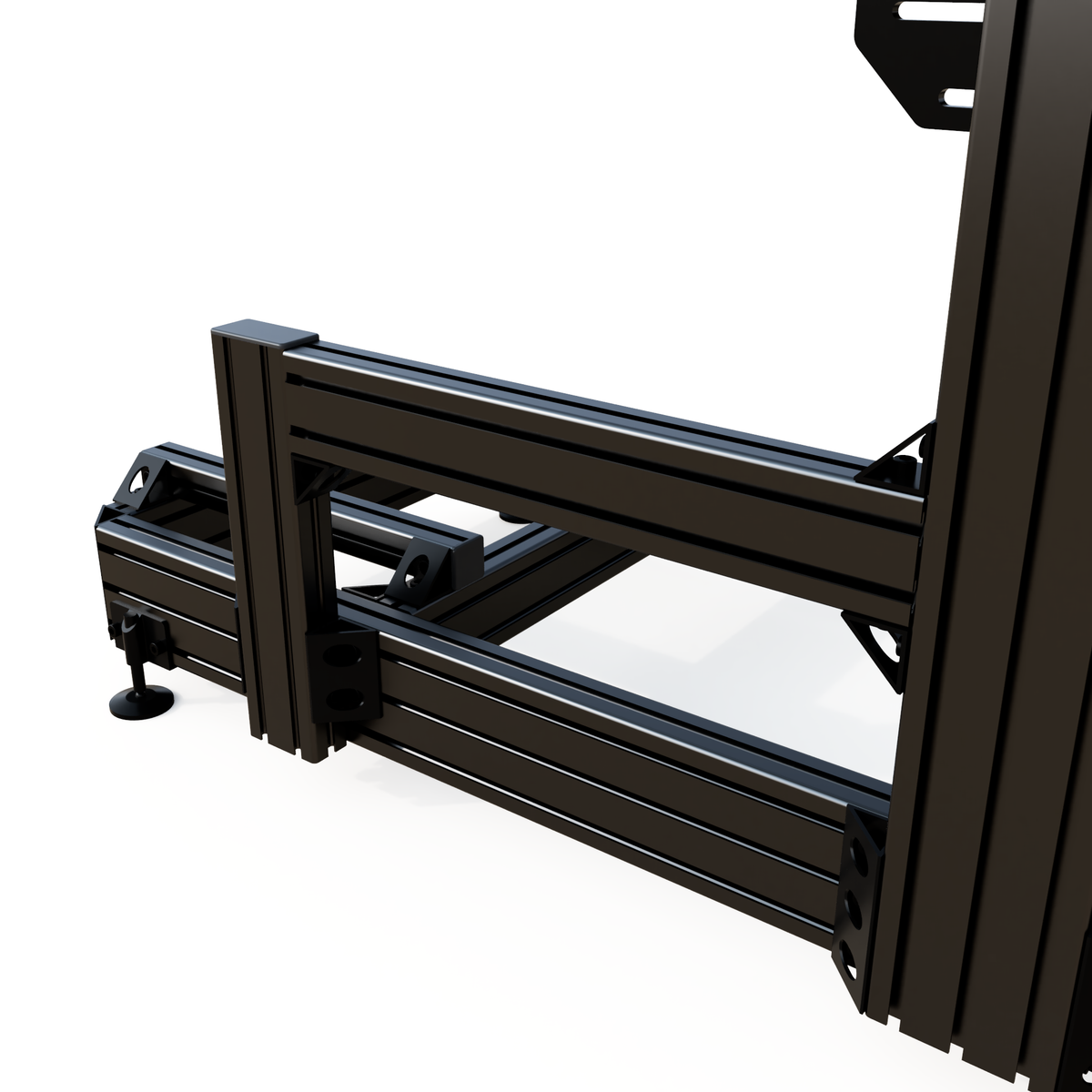

Shifters & Handbrakes

The CSR120 includes a fully braced shifter / handbrake bar.

We also include a range of brackets for mounting handbrakes and shifters. The universal brackets (not pictured) accept a wide range of shifter and bolt patterns. The universal brackets are included as part of the kit and are for light to medium duty.

Universal brackets

Seats

The flexibility of a profile rig means that any seat that includes or connects to standard rail sliders, any seat that can support top down mount, and any seat with with brackets can be easily mounted. We include extra hardware with all kits so you can get racing as soon as possible.

Key Dimensions

See what our customers have to say

Yes, we have an optional brace to close the ends which will be suitable for motion.

Yes, we can modify the rig to suit any use case.

We can offer an assembly service by request only.

If you’re unsure, send us an email with your order number and we will make sure your gear will work with our equipment, including a custom modification, if necessary.
