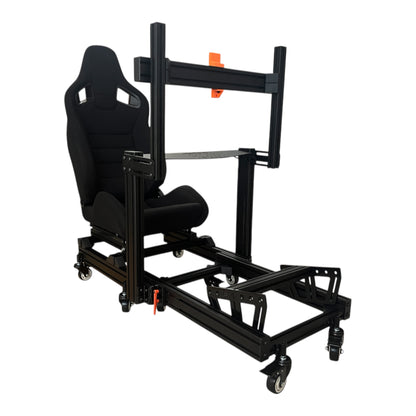

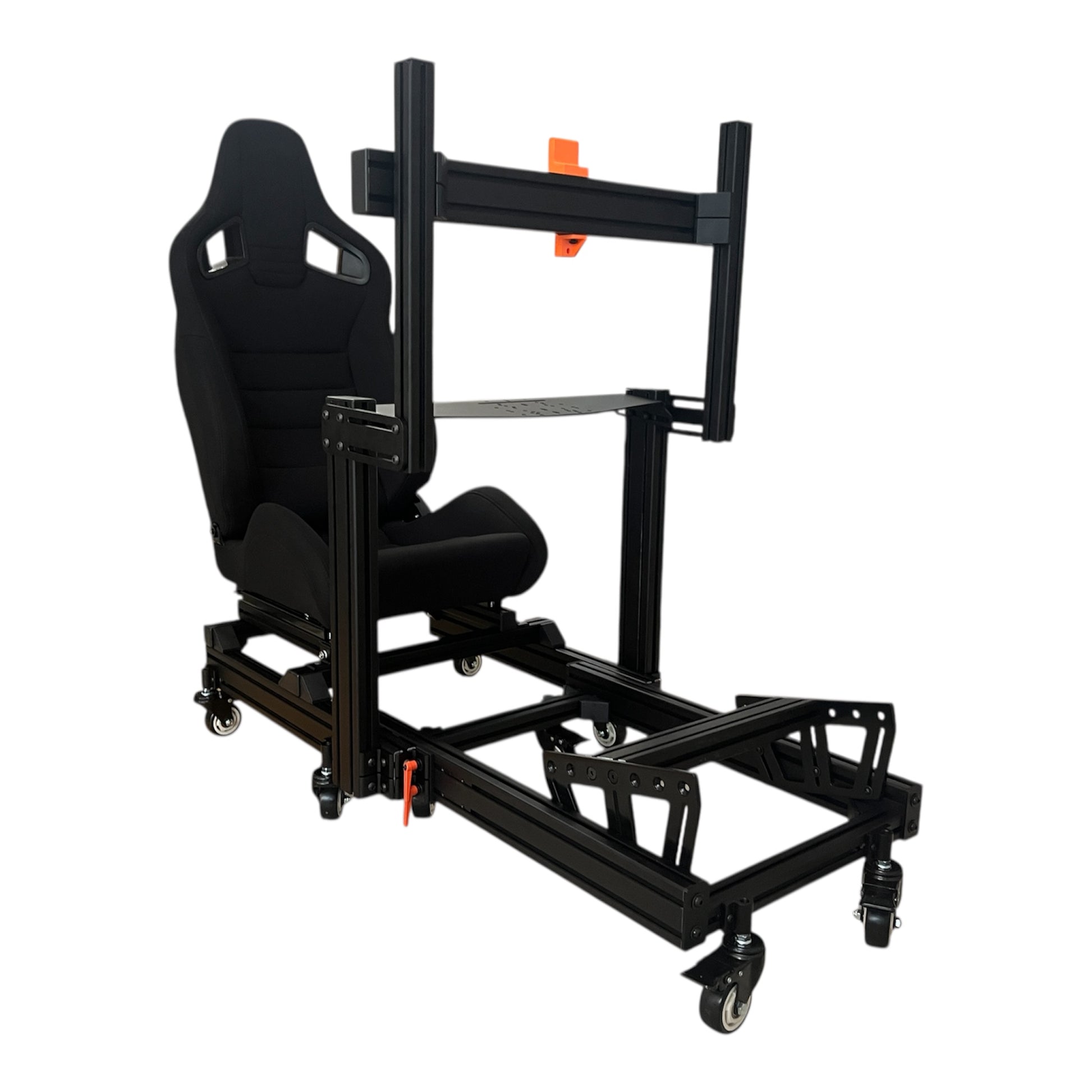

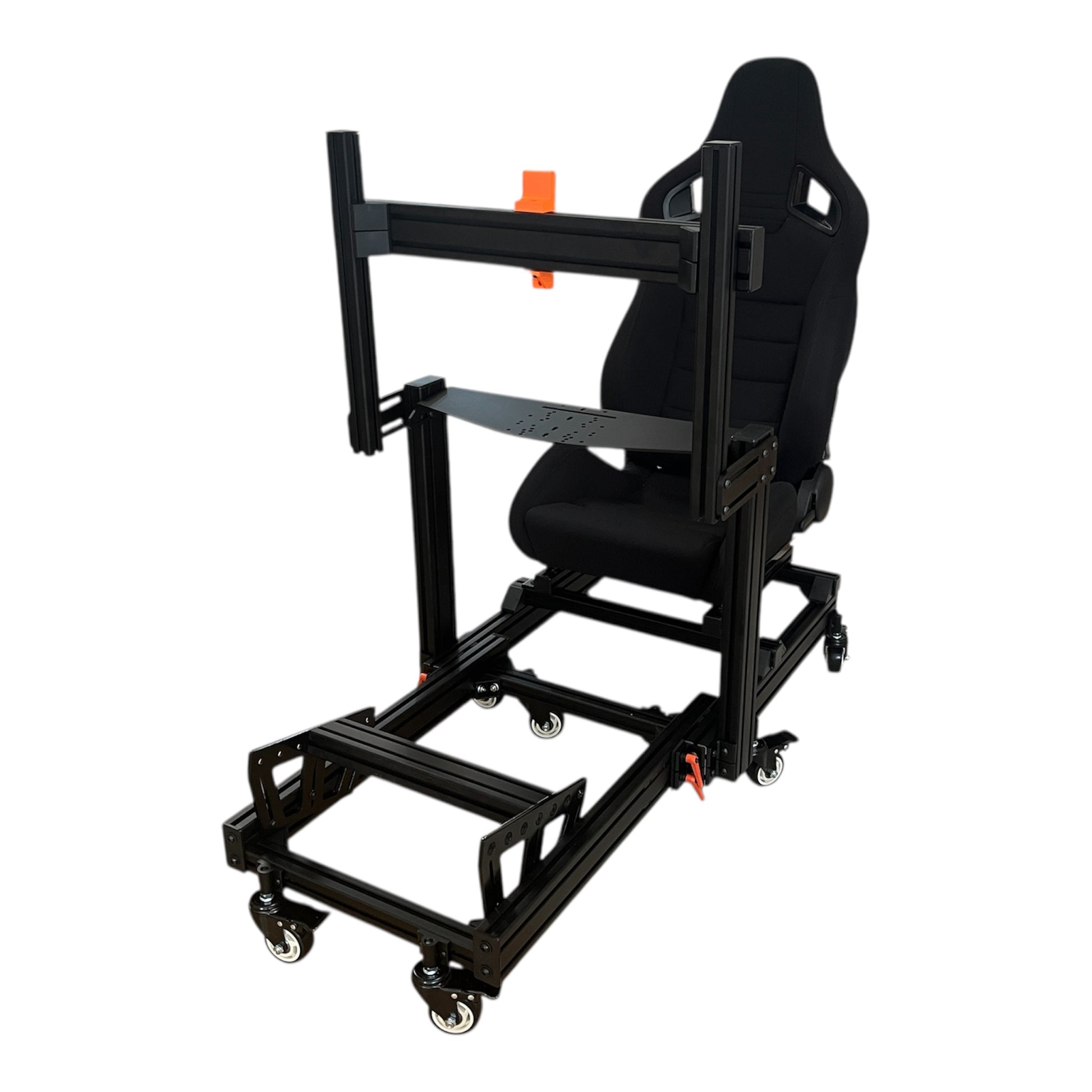

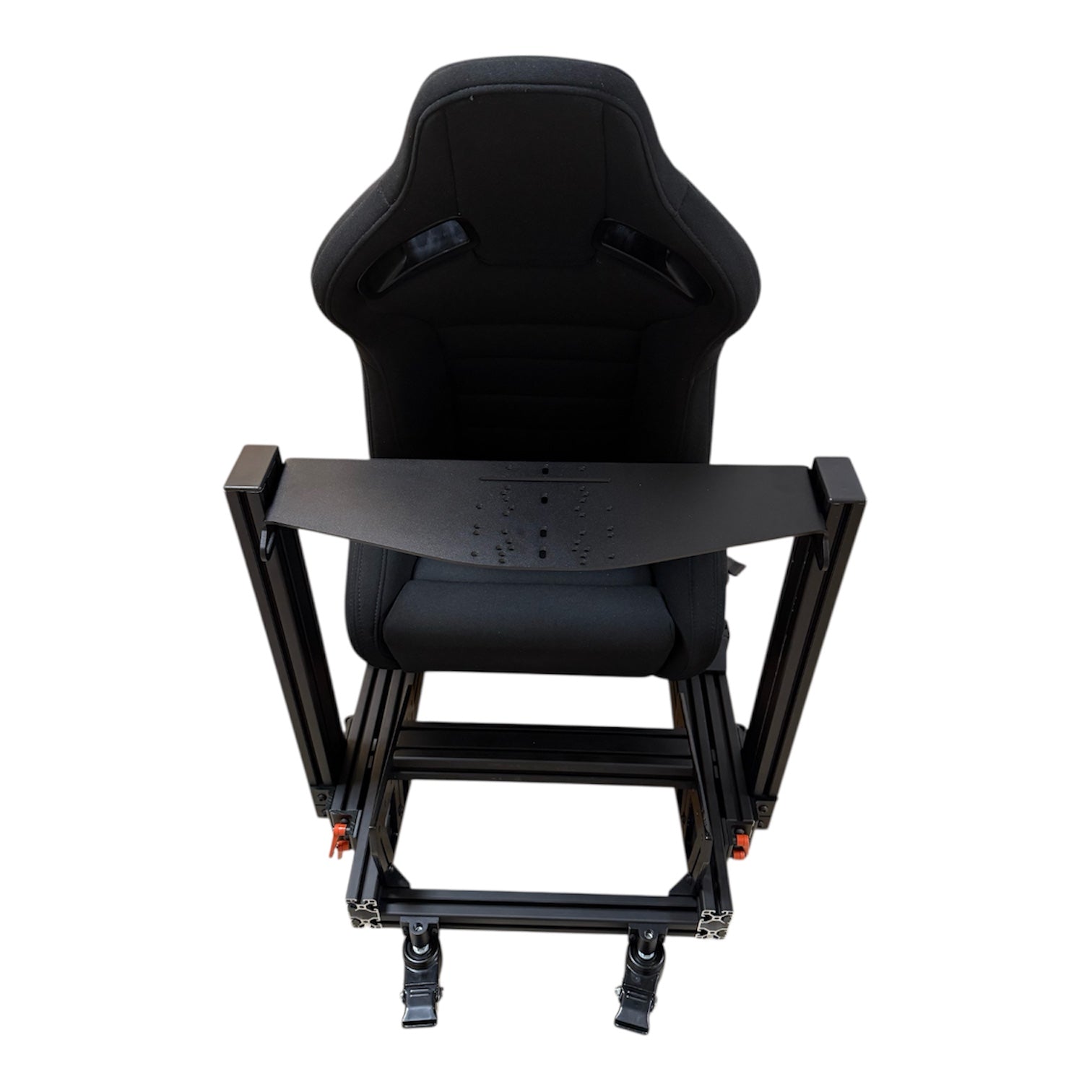

CSR1C Collapsible Profile Sim Rig

CSR1C Collapsible Profile Sim Rig

$949.00 AUD
$949.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Our first collapsible sim rig design.

Keep the family happy and the house clean whilst still enjoying a super rigid sim racing experience with a collapsible profile sim. The CSR1C draws heavily from the CSR1’s function first design philosophy.

All the tools needed to assemble the rig are included in the box. The cable management clips included with the CSR1 tuck cables neatly into the frame, keeping them out of sight, creating a crisp, clean look and feel.

Support local Aussie businesses! The steel top plate and many plastic parts are being manufactured locally in Australia.

Our design goals are

  • Minimise flex on the slider.
  • Deliver great value.
  • Try to use local businesses wherever economical.
  • Easy to assemble.
  • Easy to adjust.
  • Suitable for wheelbases of up to 12Nm torque.

What's in the box?

  • All profiles and fasteners needed. This rig primarily uses 40x80 profiles.
  • CSR profile-based pedal mounting system
  • CSR designed and Australian manufactured steel top plate
  • Cover caps for all exposed profiles
  • Aluminium profile and universal brackets for handbrake mounting
  • Aluminium profile to connect a seat
  • A set of cable clips
  • Wheels and connectors
  • A placard detailing your CSR1 specification and version
  • Allen key (hex) set
  • Spirit level
  • 13mm spanner

What’s not in the box?

  • Seat
  • Seat brackets or sliders
  • Monitor mounting

Things to know

  • The slider may require some jiggling when collapsing
  • Instructions are not released at the moment but we will be available to guide you through the assembly

Images may differ slightly as we test and improve our products, all brackets will be black.

View full details

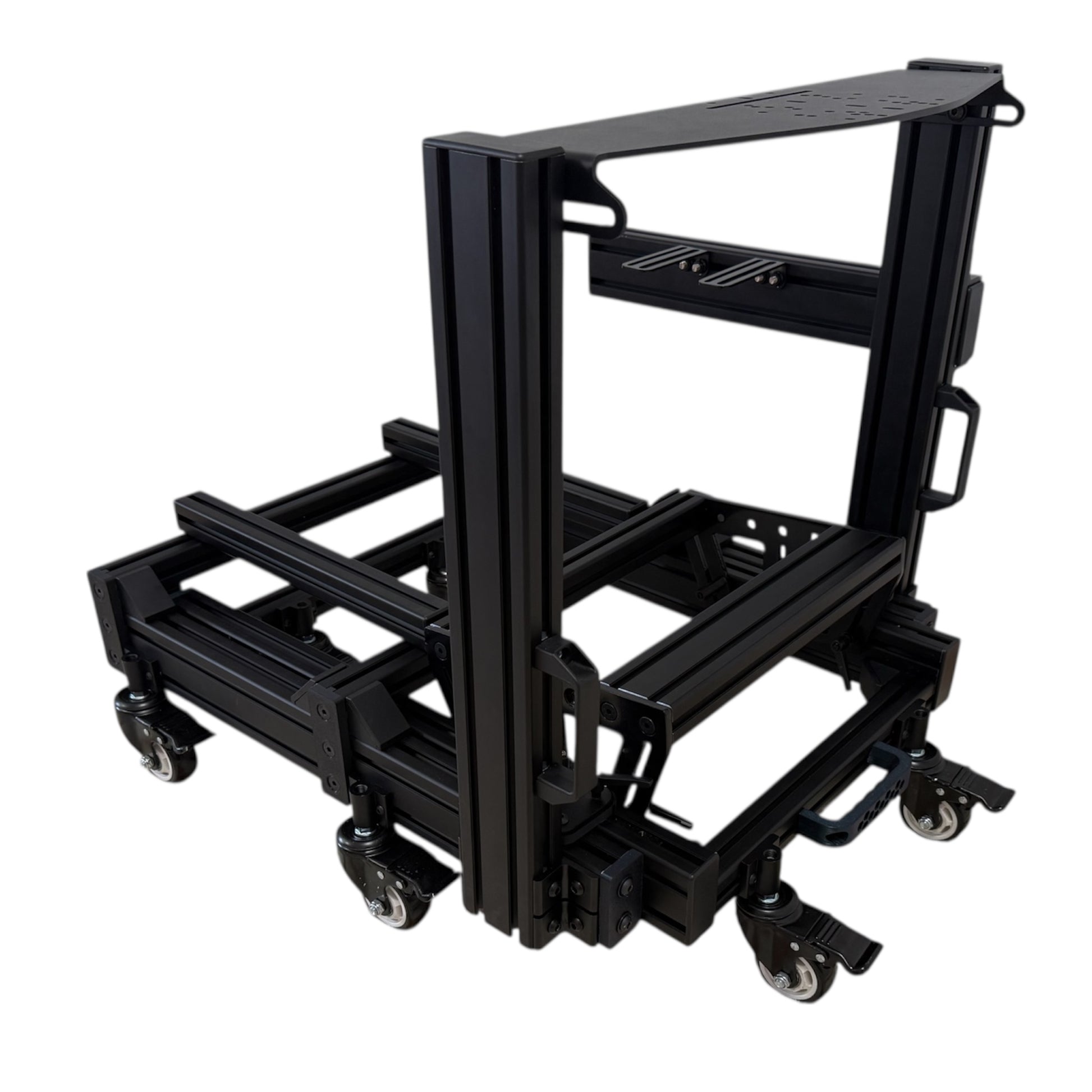

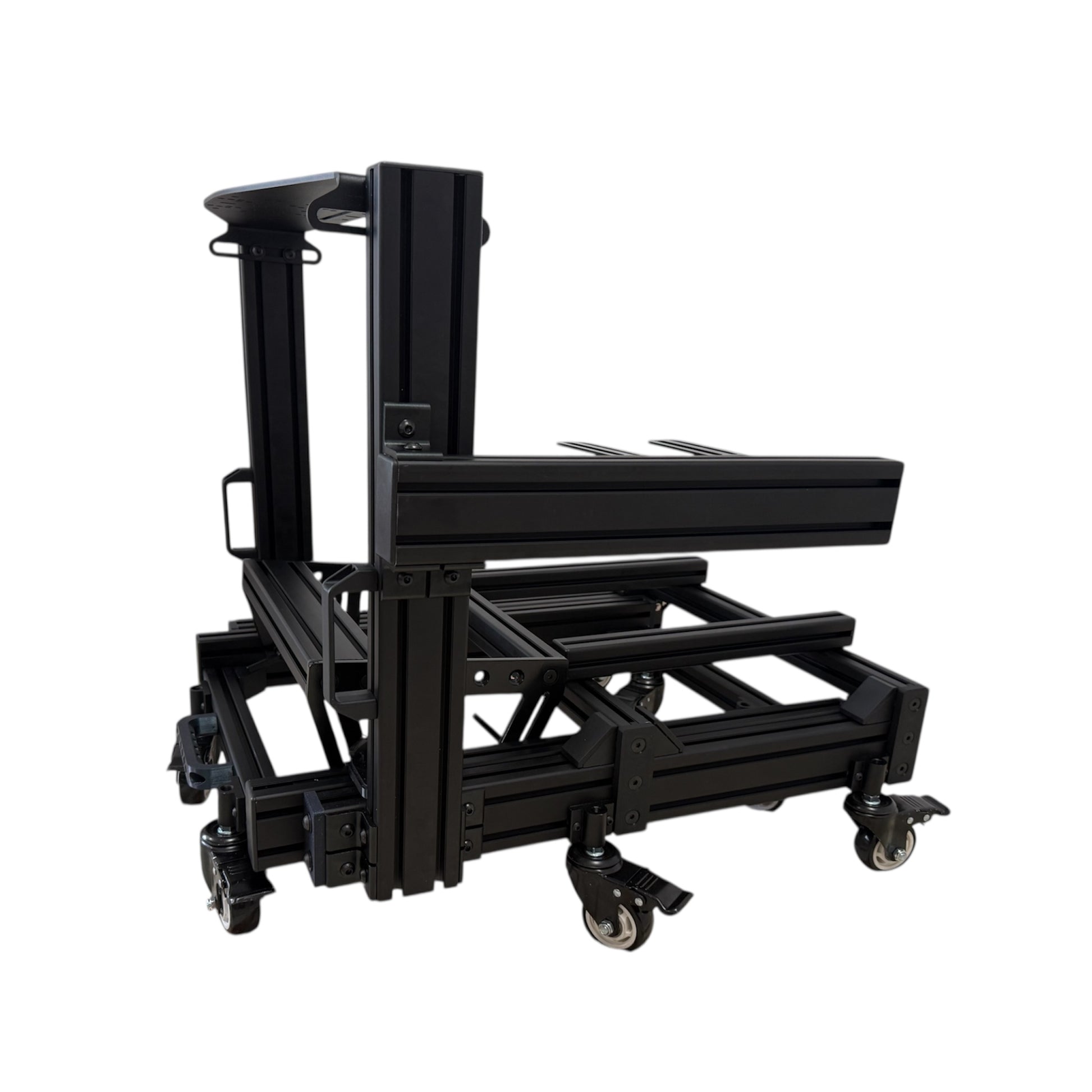

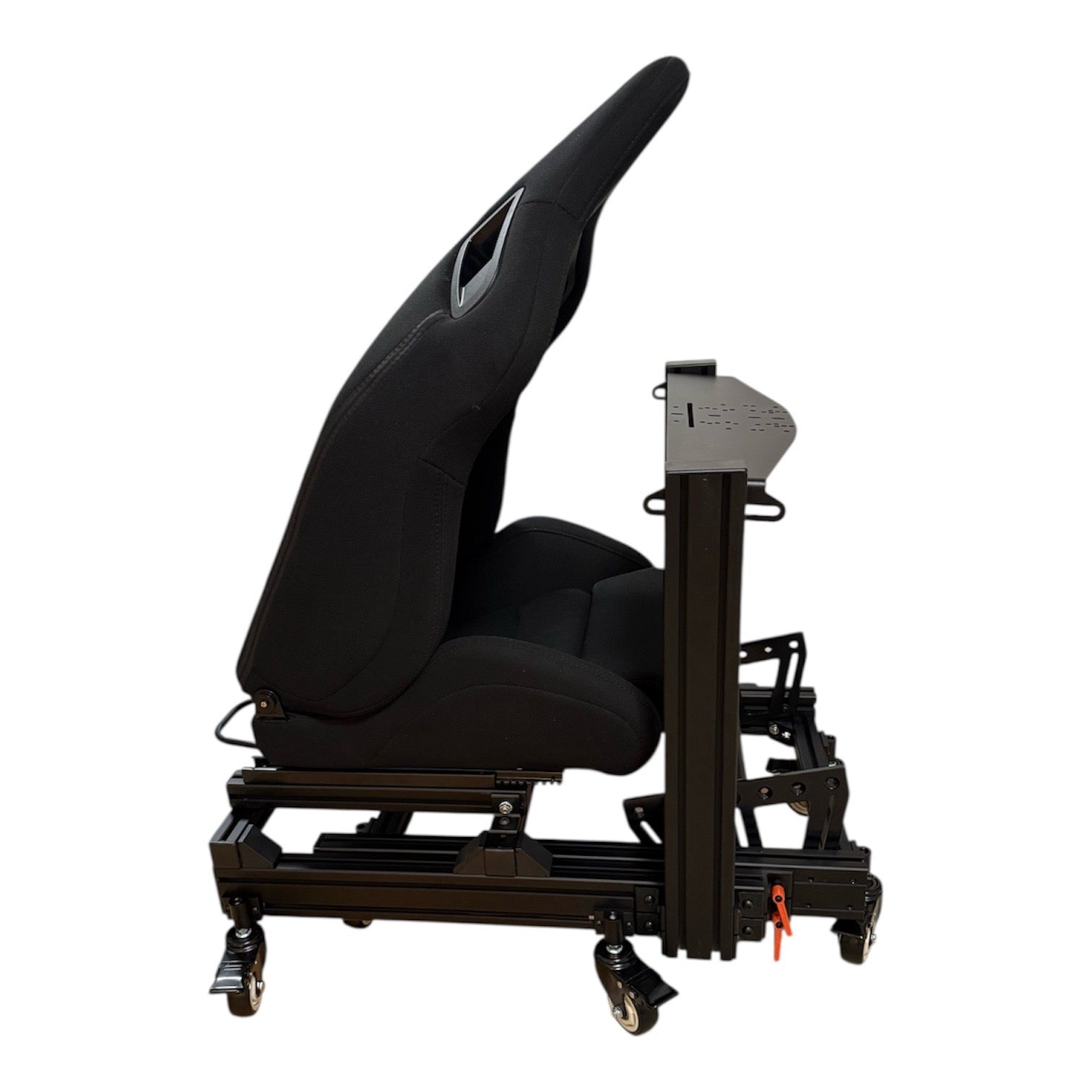

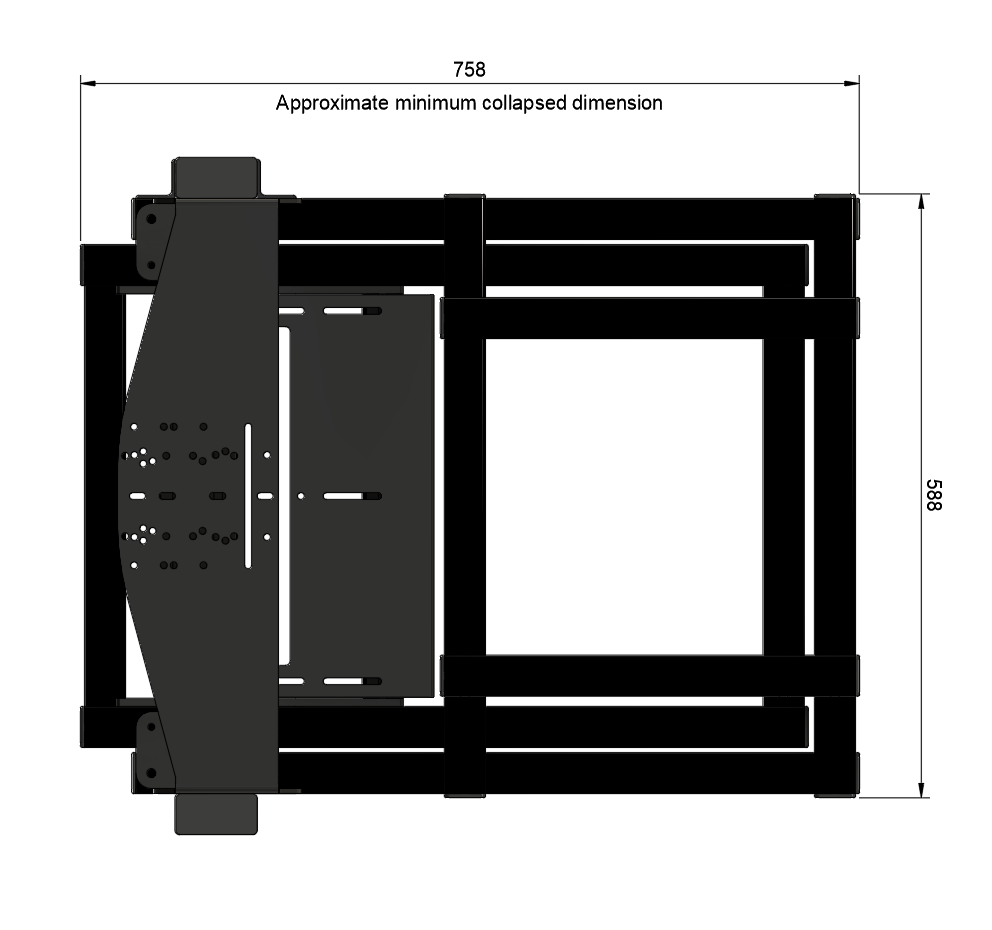

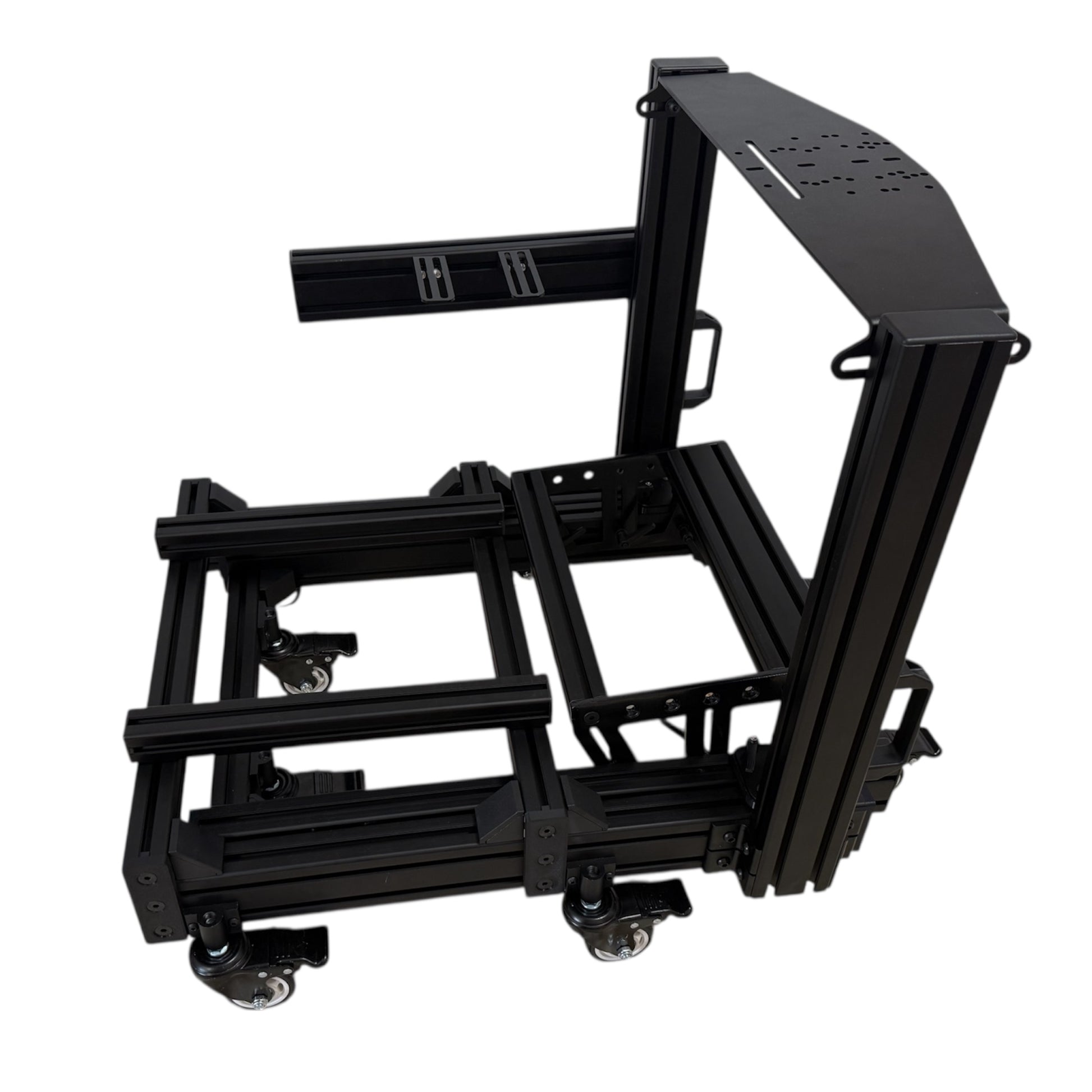

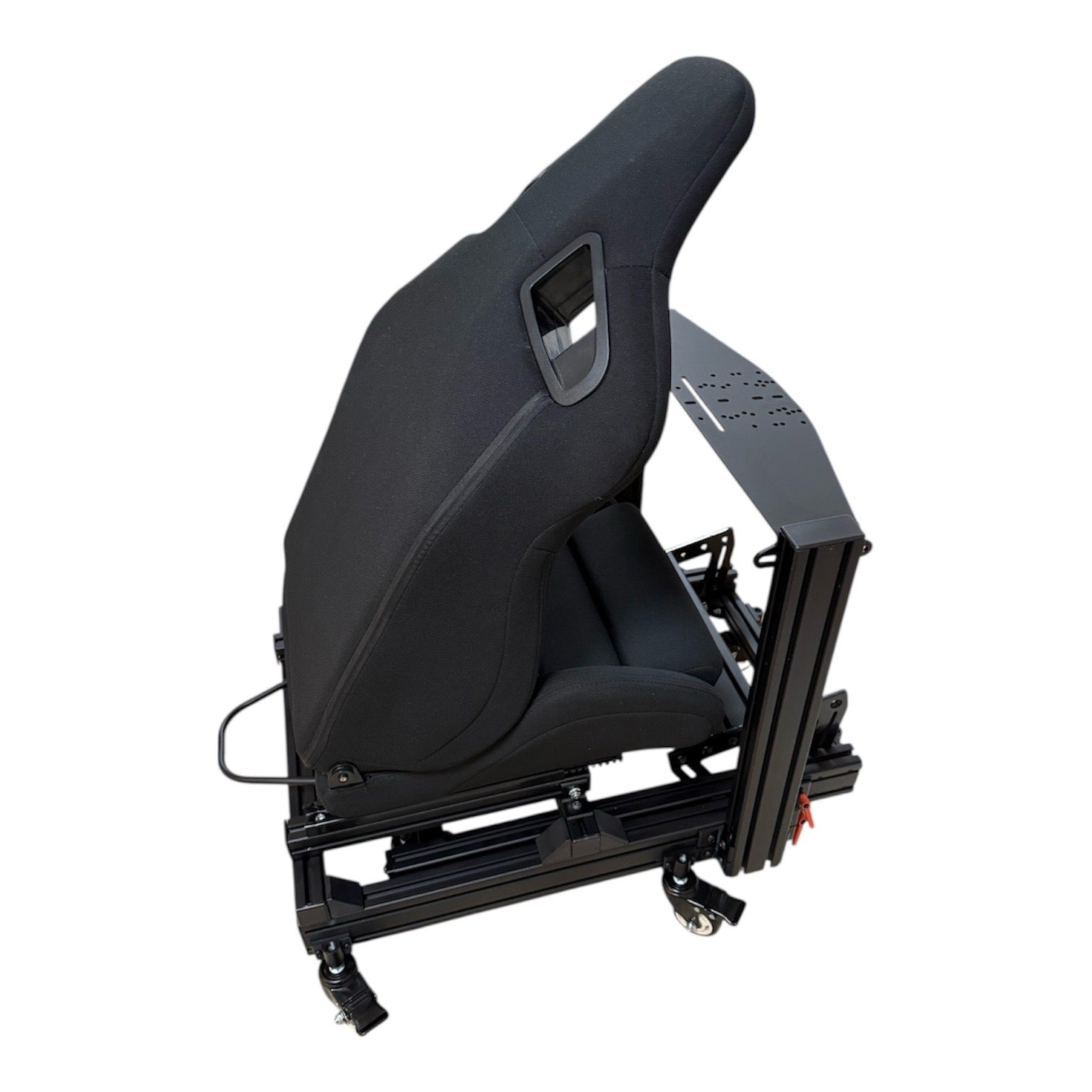

Collapsed Dimensions

The CSR1C has a minimum collpased length of approximately 750mm. The real world length can be variable based on the seat and pedal arrangement.

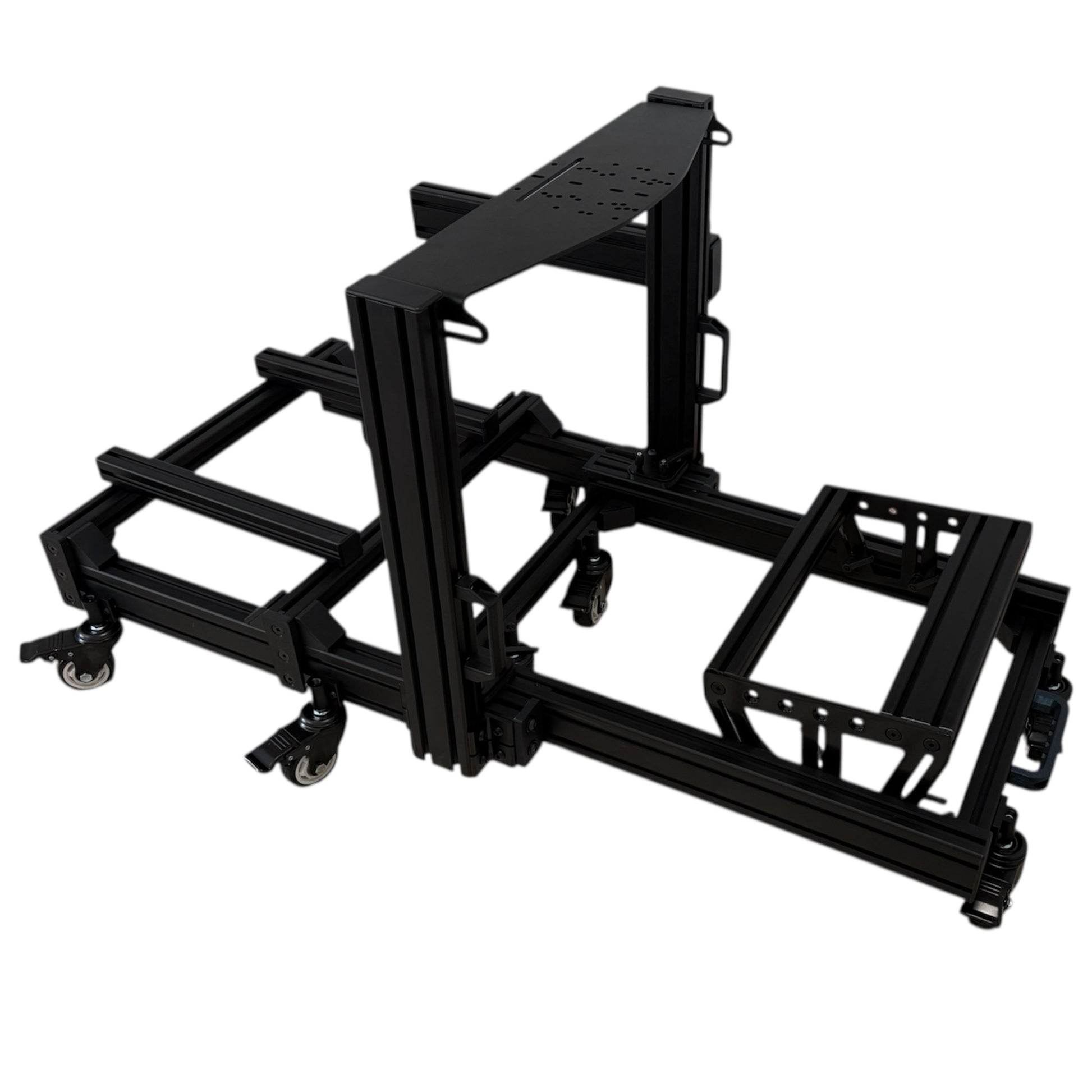

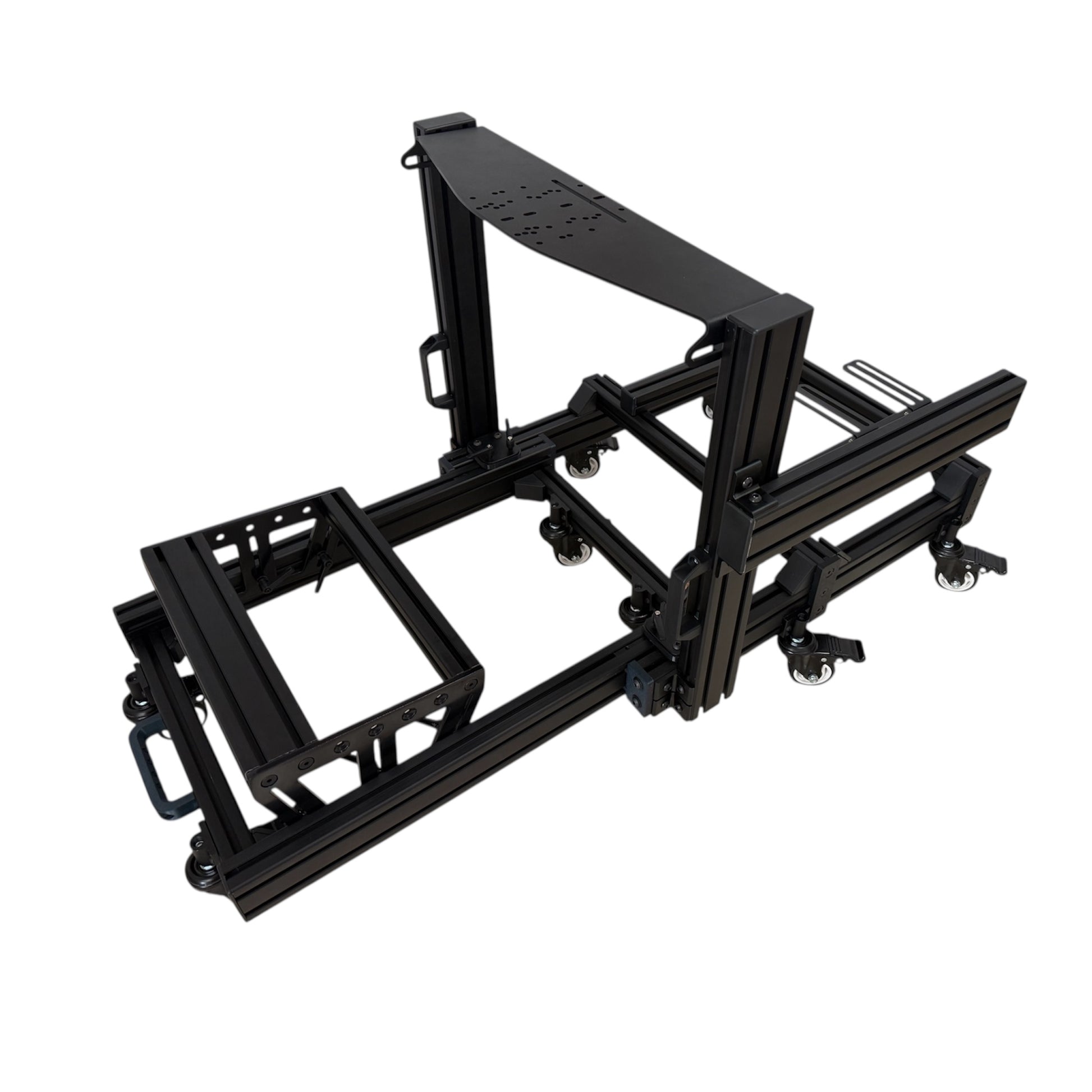

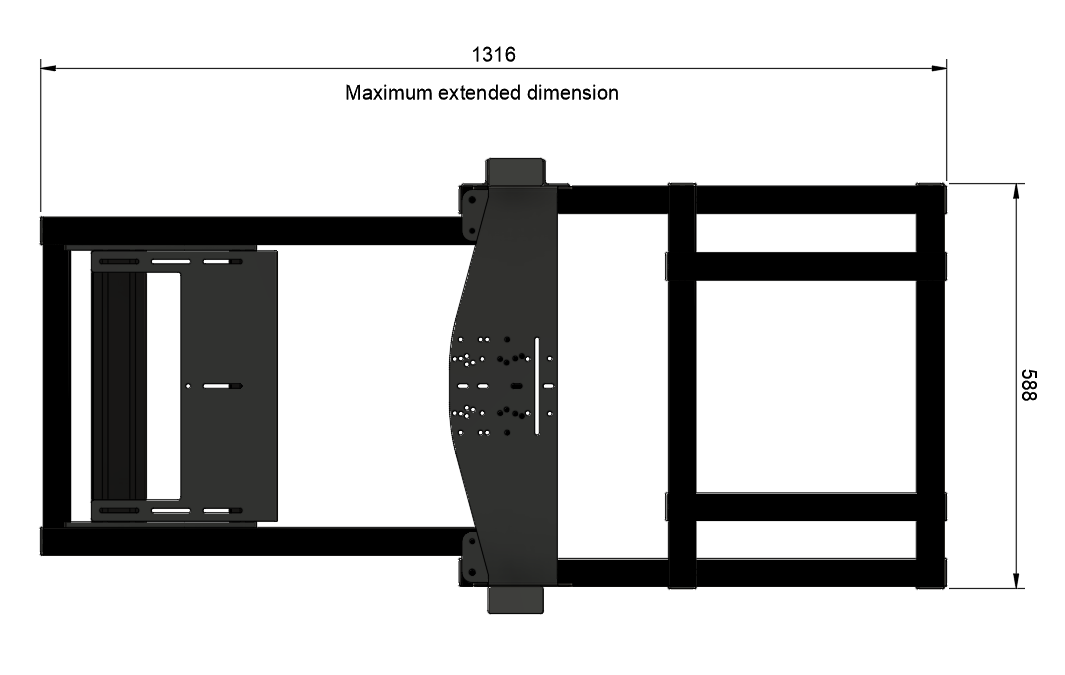

Extended Dimensions

The extended length is approximately 1300mm.

Caption

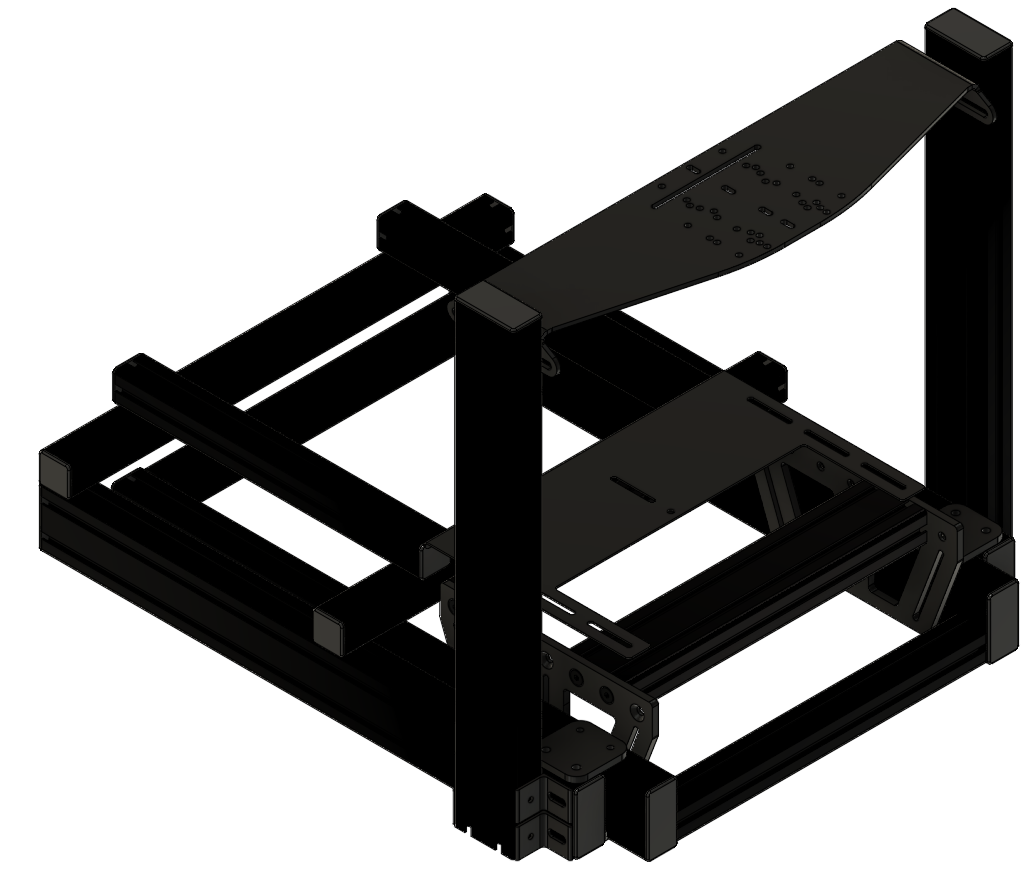

Upright Dimensions

The CSR1C uses the same base kit as the CSR1 rig however the uprights are 600mm (100mm shorter).

Compatibility

Wheel Plate

The wheel plate comes predrilled for all major brands.

Asetek - Forte, Invicta, La Prima
CAMMUS - C5, C12
FANATEC - CSL DD, GT DD Pro, CSL Elite, Clubsport DD, Clubsport DD+, Prodium DD1, Produm DD2
Logitech - G920, G29, G27, G Pro
Moza - R3, R5, R9, R12, R16
Simagic - Alpha Mini, Alpha, Alpha U
Thurstmaster - T818, T598, T300

Wheel plate mounting guide

Pedal Plate

Our pedal plate is profile based so any top down pedal mounting (SIMSONN, Heusinkveld, Simucube etc.) is able to be bolted directly to the aluminium profiles.

For underside mounting brackets are included to easily attach the majority of pedal sets to the aluminium profile.

CAMMUS - LC100, CP5
FANATEC - CSL, CSL Elite, Clubsport (any)
Logitech - G920, G29, G27, G Pro
Moza - CRP, SRP
Simagic - P500, P1000 (any), P2000
Thrustmaster - T-LCM, T3P

Shifters & Handbrakes

We include a range of bracket for mount a wide range of handbrakes and shifters. The universal brackets accept a wide range of shifter and bolt patterns. These brackets are included as part of the kit.

The brackets are light - medium duty. A heavy duty mounting system will be released as an accessory.

Can this be modified?

Yes, we can modify the rig to suit any use case.

Is there a front mount option?

Not as standard, but if this is needed, we will move this improvement forward on the roadmap!

Can you help with assembly?

We can offer an assembly service on request only.

I’m not sure if my gear will fit

If you’re unsure, send us an email with your order number and we will make sure your gear will work with our equipment, including a custom modification, if necessary.

Is CSR profile rigid?

Yes, the 40x80 profile in the CSR product has a 2mm wall thickness and is very strong. Most of the flex in any rig is from the connectors, and each of these has been selected using our extensive industrial design experience to ensure minimal flex. The CSR1 has then been meticulously tested to ensure great rigidity.
